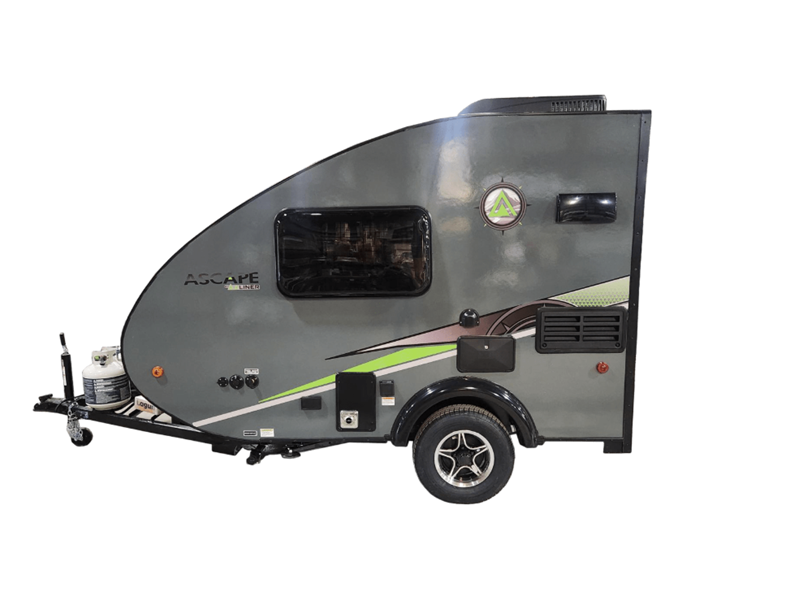

Get ready to escape the busyness of life in an Ascape Aliner travel trailer. These models are the lightest travel trailer in its class, and also the easiest to pull behind any vehicle. The aerodynamic design gives each trailer a sleek and stylish look, while being economical.

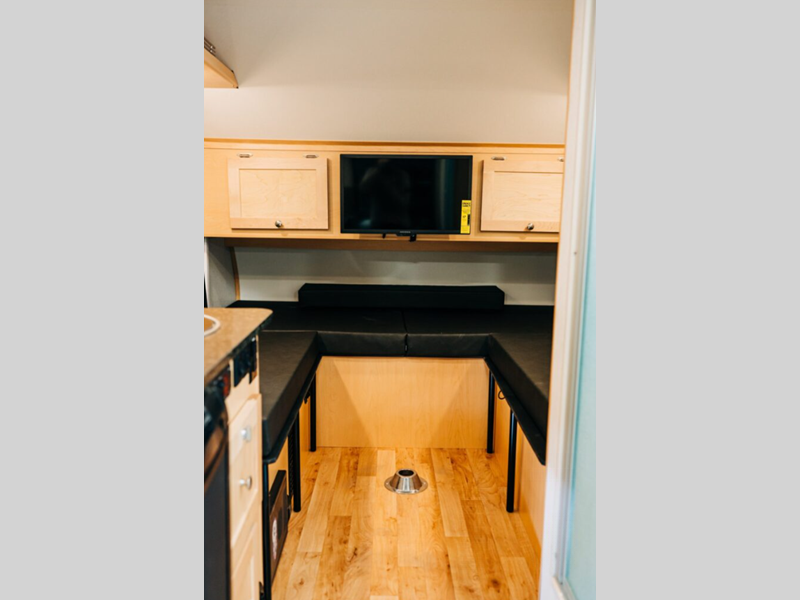

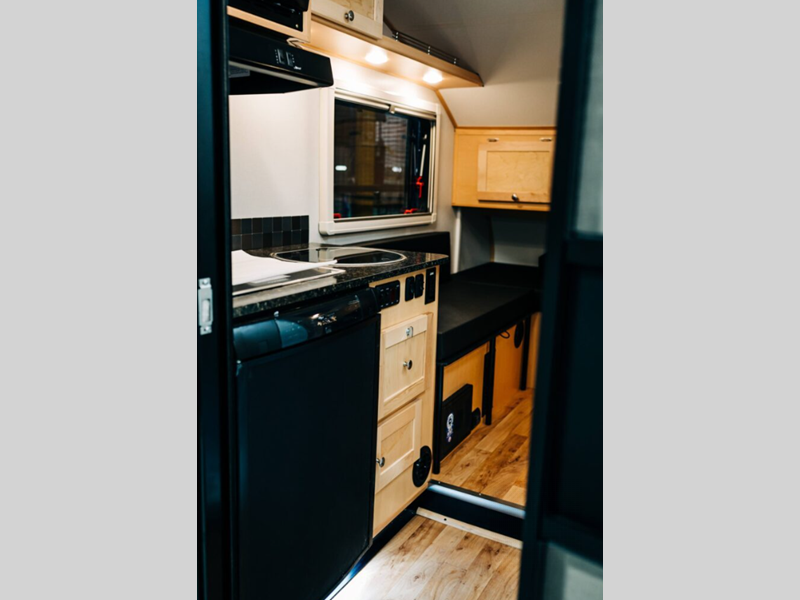

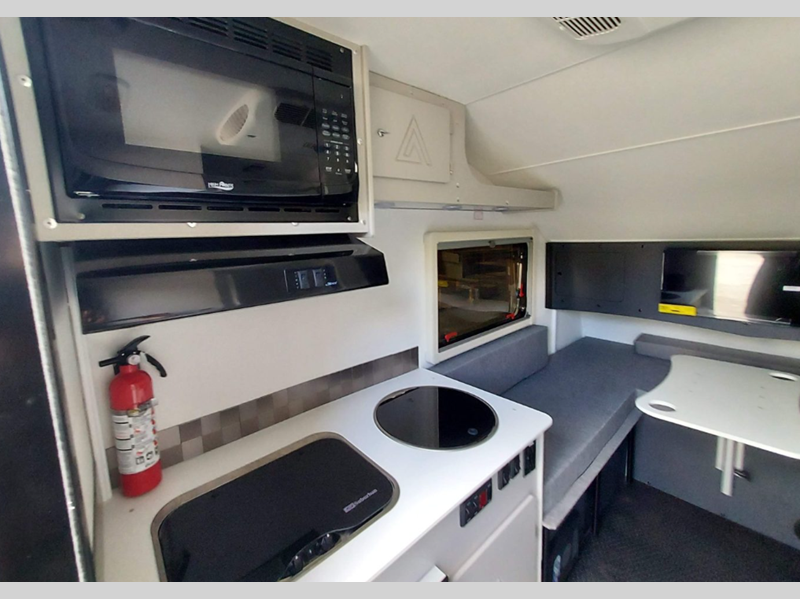

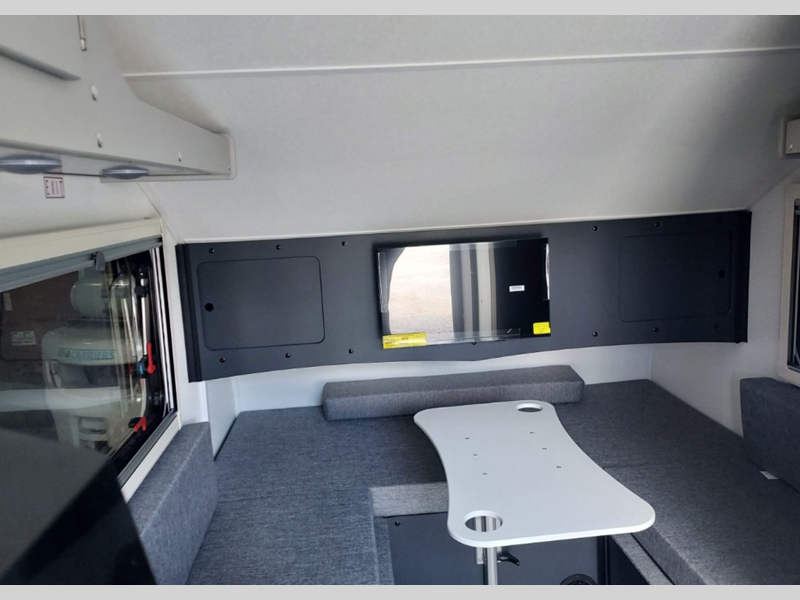

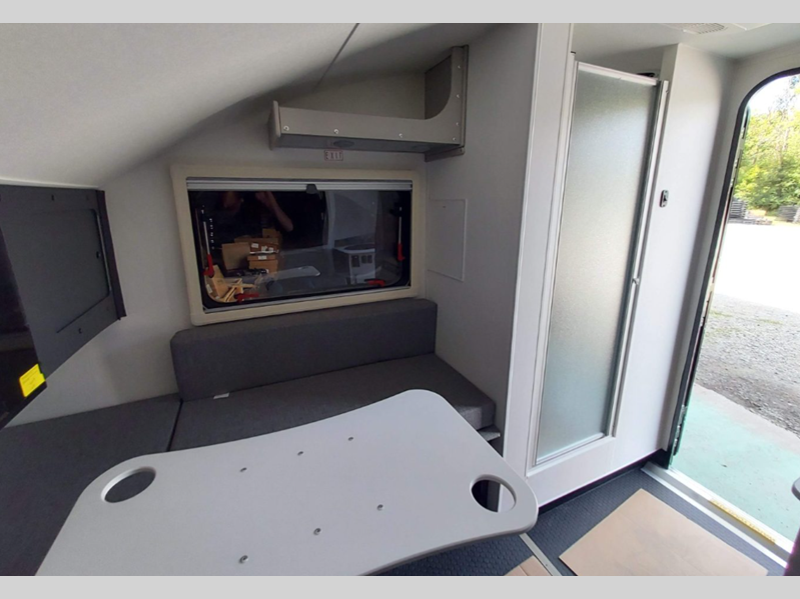

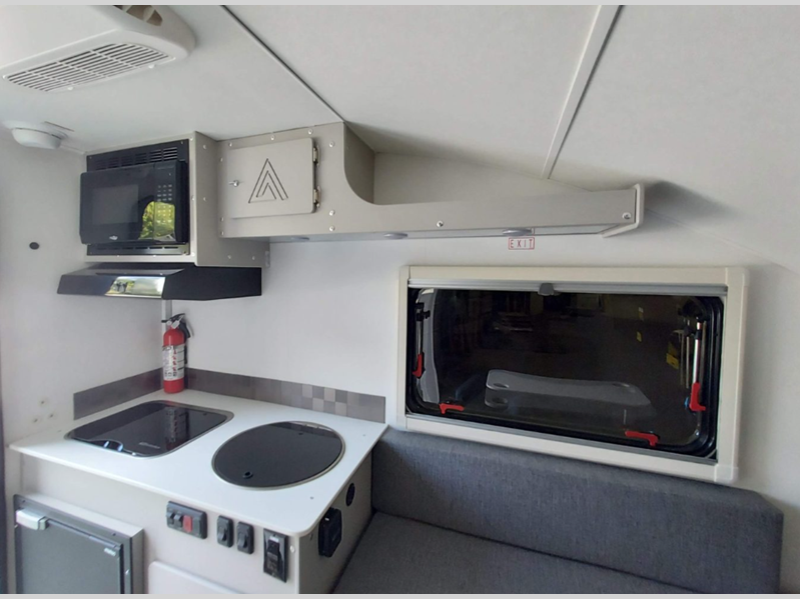

Inside an Ascape you will find all of the amenities that you would expect on any trailer of this size. The dinette in each model doubles as your bed at night, and you will find a kitchen area for preparing meals in several models, plus there is an air conditioner, furnace, and even a TV depending on the floorplan you choose. For the couple who enjoys the simpler side of camping, and would like to sleep off of the ground, an Ascape travel trailer by Aliner may be ideal for you!

  • Ascape Camp

    Ascape Camp Floorplan Image

    ALiner Ascape travel trailer Camp highlights: Cabinet/Wardrobe Two Burner Stove ... more about Ascape Camp

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 13 ft
    Ext Width 6 ft 1 in
    Ext Height 8 ft 4 in
    Int Height 6 ft 4 in
    Hitch Weight 229 lbs
    Dry Weight 1495 lbs
    Cargo Weight 1005 lbs
    Fresh Water Capacity 11 gals
    Grey Water Capacity 13 gals
    Furnace BTU 16000 btu
    Refrigerator Type Three Way
    Refrigerator Size 1.9 cu ft
    Cooktop Burners 2
    Axle Weight 2500 lbs
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Suburban
    AC BTU 9200 btu
    Cargo Deck Size 0 ft
    Axle Count 1
    Number of LP Tanks 1

    Similar Floorplans

    U Shaped Dinette

  • Ascape Grand Plus

    Ascape Grand Plus Floorplan Image

    ALiner Ascape travel trailer Grand Plus highlights: Cassette Toilet Two Burner ... more about Ascape Grand Plus

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 14 ft
    Ext Width 6 ft 7 in
    Ext Height 8 ft 4 in
    Int Height 6 ft 4 in
    Hitch Weight 230 lbs
    Dry Weight 1750 lbs
    Cargo Weight 750 lbs
    Fresh Water Capacity 11 gals
    Grey Water Capacity 13 gals
    Tire Size 185/80 R13
    Furnace BTU 18000 btu
    Refrigerator Type Three Way
    Refrigerator Size 3 cu ft
    Cooktop Burners 2
    Axle Weight 2500 lbs
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Suburban
    AC BTU 9200 btu
    Cargo Deck Size 0 ft
    TV Info 23" Flat Screen TV
    Axle Count 1
    Number of LP Tanks 2

    Similar Floorplans

    U Shaped Dinette

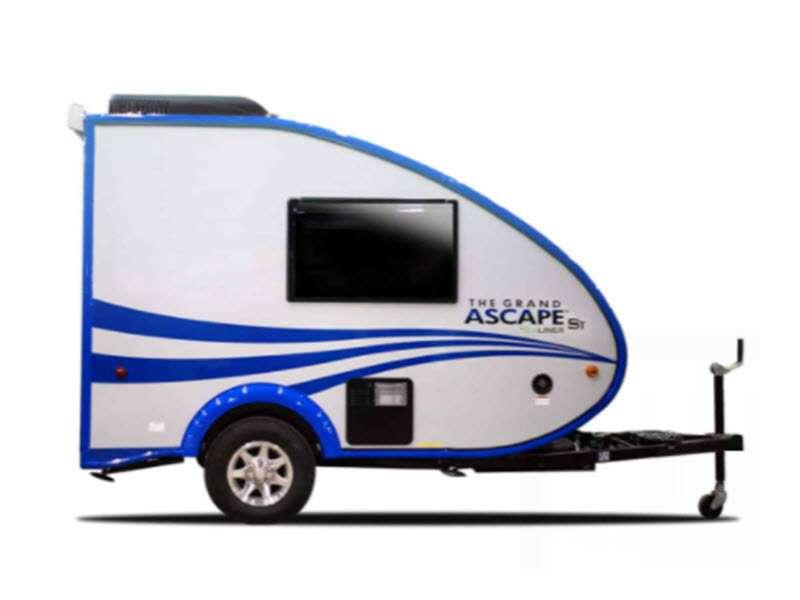

  • Ascape Grand ST

    Ascape Grand ST Floorplan Image

    ALiner Ascape travel trailer Grand ST highlights: Wet Bath Two Burner Stove Sink ... more about Ascape Grand ST

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 14 ft
    Ext Width 6 ft 7 in
    Ext Height 8 ft 4 in
    Int Height 6 ft 4 in
    Hitch Weight 225 lbs
    Dry Weight 1700 lbs
    Cargo Weight 800 lbs
    Fresh Water Capacity 11 gals
    Grey Water Capacity 13 gals
    Tire Size 185/80 R13
    Furnace BTU 18000 btu
    Refrigerator Type Three Way
    Refrigerator Size 3 cu ft
    Cooktop Burners 2
    Axle Weight 2500 lbs
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Suburban
    AC BTU 9200 btu
    Cargo Deck Size 0 ft
    TV Info 23" Flat Screen TV
    Axle Count 1
    Number of LP Tanks 2
    Shower Type Wet/Bath Shower

    Similar Floorplans

    U Shaped Dinette

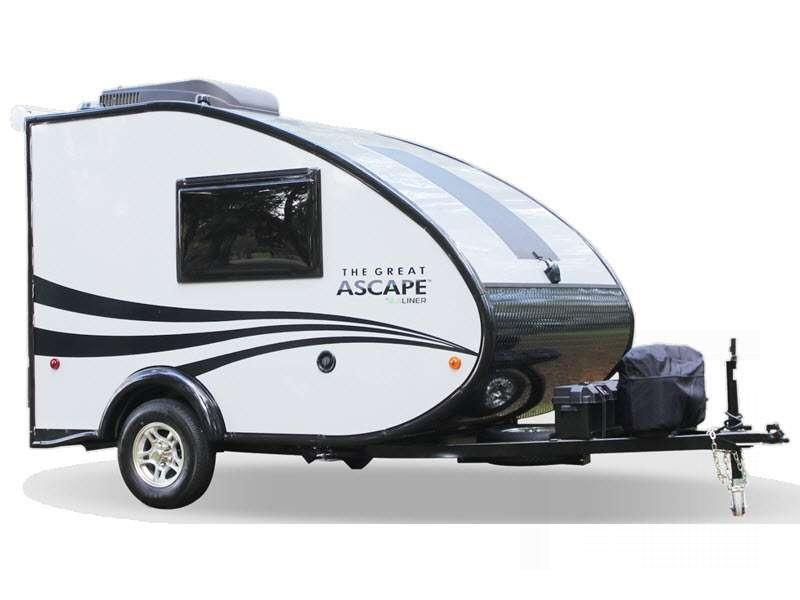

  • Ascape Great Plus

    Ascape Great Plus Floorplan Image

    ALiner Ascape travel trailer Great Plus highlights: Deep Bowl Euro Sink U-Shaped ... more about Ascape Great Plus

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 14 ft
    Ext Width 6 ft 7 in
    Ext Height 8 ft 4 in
    Int Height 6 ft 4 in
    Hitch Weight 240 lbs
    Dry Weight 1900 lbs
    Cargo Weight 600 lbs
    Fresh Water Capacity 11 gals
    Grey Water Capacity 13 gals
    Tire Size 185/80 R13
    Furnace BTU 18000 btu
    Refrigerator Type Three Way
    Refrigerator Size 3 cu ft
    Cooktop Burners 2
    Number of Awnings 1
    Axle Weight 2500 lbs
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Suburban
    AC BTU 9200 btu
    Cargo Deck Size 0 ft
    TV Info 23" Flat Screen TV
    Awning Info 6' Thule
    Axle Count 1
    Number of LP Tanks 2

    Similar Floorplans

    U Shaped Dinette

  • Ascape Great ST

    Ascape Great ST Floorplan Image

    ALiner Ascape travel trailer Great ST highlights: Wet Bath Deep Bowl Euro Sink ... more about Ascape Great ST

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 14 ft
    Ext Width 6 ft 7 in
    Ext Height 8 ft 4 in
    Int Height 6 ft 4 in
    Hitch Weight 220 lbs
    Dry Weight 1850 lbs
    Cargo Weight 650 lbs
    Fresh Water Capacity 11 gals
    Grey Water Capacity 13 gals
    Tire Size 185/80 R13
    Furnace BTU 18000 btu
    Refrigerator Type Three Way
    Refrigerator Size 3 cu ft
    Cooktop Burners 2
    Number of Awnings 1
    Axle Weight 2500 lbs
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Suburban
    AC BTU 9200 btu
    Cargo Deck Size 0 ft
    TV Info 23" Flat Screen TV
    Awning Info 6' Thule
    Axle Count 1
    Number of LP Tanks 2
    Shower Type Wet/Bath Shower

    Similar Floorplans

    U Shaped Dinette

  • Ascape MT

    Ascape MT Floorplan Image

    ALiner Ascape travel trailer MT highlights: Frameless Windows Zamp Solar Port ... more about Ascape MT

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 13 ft
    Ext Width 6 ft 1 in
    Ext Height 8 ft 4 in
    Int Height 6 ft 4 in
    Hitch Weight 190 lbs
    Dry Weight 1170 lbs
    Cargo Weight 1330 lbs
    Axle Weight 2500 lbs
    Cargo Deck Size 0 ft
    Axle Count 1

    Similar Floorplans

    U Shaped Dinette

  • Ascape Plus

    Ascape Plus Floorplan Image

    ALiner Ascape travel trailer Plus highlights: Deep Bowl Sink Two Burner Stove ... more about Ascape Plus

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 13 ft
    Ext Width 6 ft 1 in
    Ext Height 8 ft 4 in
    Int Height 6 ft 4 in
    Hitch Weight 170 lbs
    Dry Weight 1630 lbs
    Cargo Weight 870 lbs
    Fresh Water Capacity 11 gals
    Grey Water Capacity 13 gals
    Furnace BTU 16000 btu
    Refrigerator Type Three Way
    Refrigerator Size 3.0 cu ft
    Cooktop Burners 2
    Number of Awnings 1
    Axle Weight 2500 lbs
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Surburban
    AC BTU 9200 btu
    TV Info 23" Flat Screen TV
    Awning Info 5' Carefree
    Axle Count 1
    Number of LP Tanks 2

    Similar Floorplans

    U Shaped Dinette

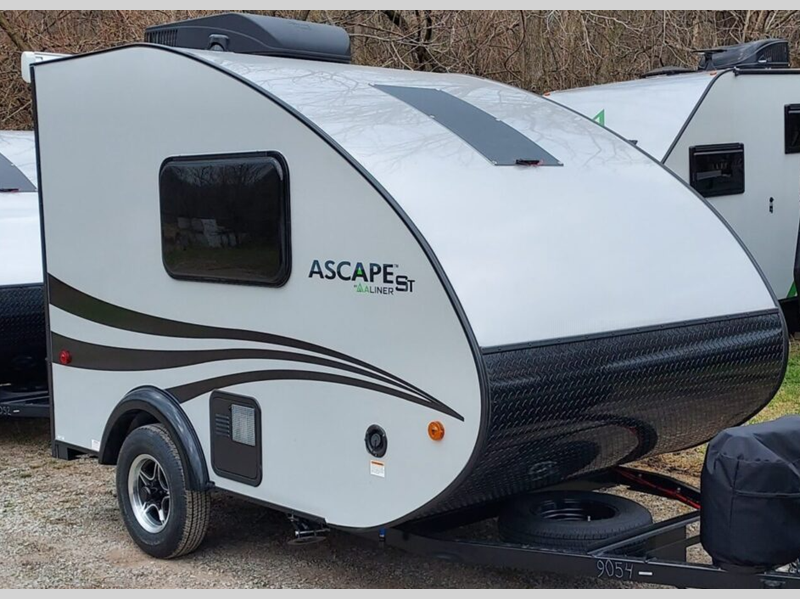

  • Ascape ST

    Ascape ST Floorplan Image

    ALiner Ascape travel trailer ST highlights: Wet Bath Two Burner Stove Sink ... more about Ascape ST

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 13 ft
    Ext Width 6 ft 1 in
    Ext Height 8 ft 4 in
    Int Height 6 ft 4 in
    Hitch Weight 220 lbs
    Dry Weight 1575 lbs
    Cargo Weight 925 lbs
    Fresh Water Capacity 11 gals
    Grey Water Capacity 13 gals
    Furnace BTU 16000 btu
    Refrigerator Type Three Way
    Refrigerator Size 1.9 cu ft
    Cooktop Burners 2
    Axle Weight 2500 lbs
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Suburban
    AC BTU 9200 btu
    Cargo Deck Size 0 ft
    Axle Count 1
    Number of LP Tanks 1
    Shower Type Wet/Bath Shower

    Similar Floorplans

    U Shaped Dinette

Ascape Features:

Standard Features



Ascape Plus

Exterior

  • Outside Shower
  • Front Mounted Solar Panel
  • Zamp Solar Port
  • Carefree 5' Awning

Interior

  • Deep Bowl Sink with Pull-Out Faucet
  • Thetfor Cassette Toilet
  • 23" Flat Screen TV

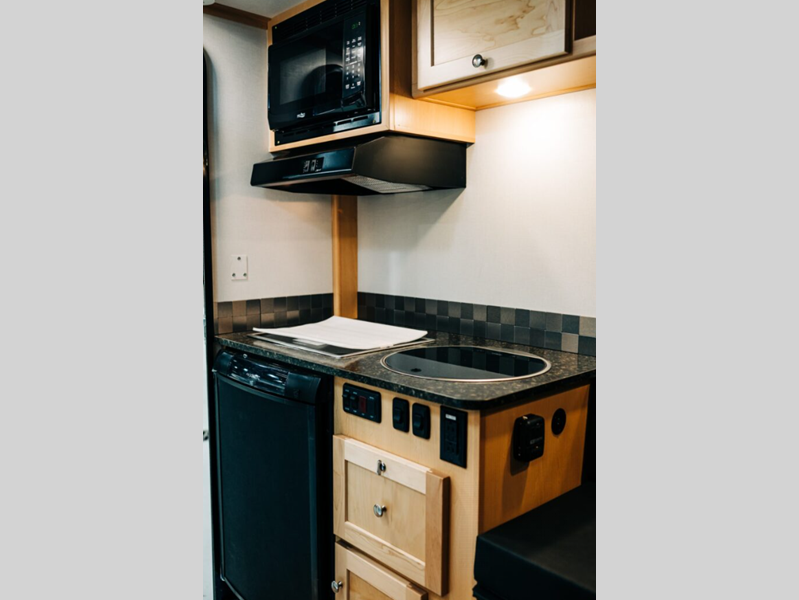

Appliances

  • Atwood 16,000 btu Furance
  • 3-Way Refrigerator, 3.0 cu. ft.
  • Suburban 6 gal. Porcelain Lined Water Heater
  • Two Bunrer Range Top
  • Range Hood w/Vent Fan
  • Shurflo Electic Water Pump
  • Coleman Mach 8 - 9200 btu Roof Mounted A/C

Chassis

  • Dual 20 lb. LP Tanks w/ Auto Changeover
  • 2500 lb. Dexter Torsion Axle

Ascape Models: ST, Camp

Exterior

  • Outside Shower
  • Zamp Solar Port
  • Carefree 5' Awning (Option)

Interior

  • Standard Sink with Stationary Faucet
  • Thetfor Cassette Toilet (Camp N/A)
  • 23" Flat Screen TV (Option)

Appliances

  • Atwood 16,000 btu Furance
  • 3-Way Refrigerator, 1.9 cu. ft.
  • Suburban 6 gal. Porcelain Lined Water Heater
  • Two Burner Range Top
  • Shurflo Electic Water Pump
  • Coleman Mach 8 - 9200 btu Roof Mounted A/C

Chassis

  • Dual 20 lb. LP Tanks w/ Auto Changeover (Option)
  • Single LP Tank
  • 2500 lb. Dexter Torsion Axle

Ascape MT

Exterior

  • Zamp Solar Port
  • Carefree 5' Awning (Option)

Appliances

  • Coleman Mach 8 - 9200 btu Roof Mounted A/C (Option)
  • Fantastic Fan

Chassis

  • 2500 lb. Dexter Torsion Axle

Grand Ascape ST and Plus/ Great Ascape ST and Plus

Exterior

  • Color Coordinated Exterior Trim Packages (New)
  • Outside Shower
  • Front Mounted Solar Panel Watts (Grand - 50; Great - 100)
  • Zamp Solar Port
  • Thule 6' Awning (New) (Grand - option)
  • Plastoform Double Pane Windows (New)

Interior

  • Smev Deep Bowl Euro Sink (Great only)
  • Infinity Luxury Woven Vinyl (New) (Great only)
  • Wood-Veneered 100% Lite-Ply Cabinetry (New) (Great only)

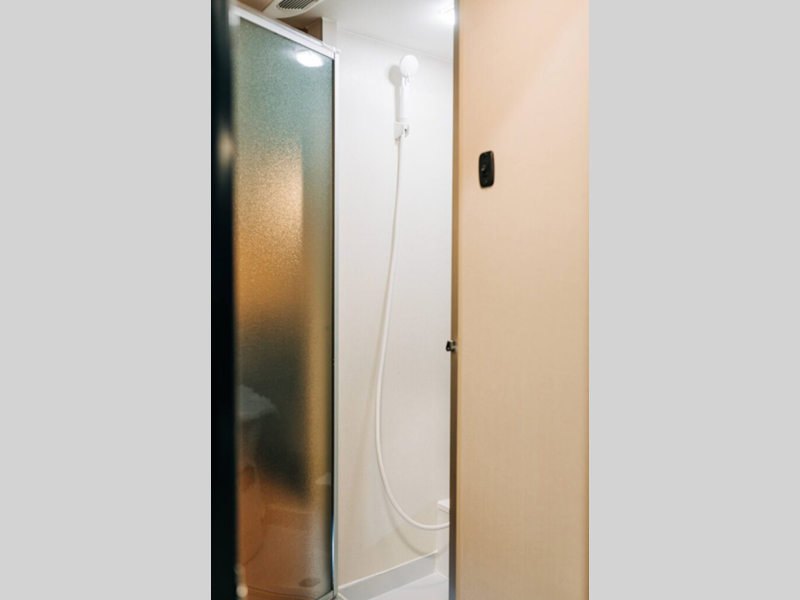

  • Enclosed Shower and Toilet Combination (Grand ST/Great ST only)
  • Metal Seat Frames (New) (Great only)
  • Cassette Toilet
  • 23" Flat Screen TV
  • King Jack Digital Antenna (Great only)

Appliances

  • Atwood 18,000 btu Furnace
  • Dometic 3-Way Refrigerator, 3 cu. ft.
  • Suburban 6 gal. Porcelain Lined Water Heater
  • Smev Two Burner Euro Range Top (New) (Great only)
  • Suburban 2 Burner Stove (Grand only)
  • Range Hood with Vent Fan
  • Built-In Microwave
  • Shurflo Electric Water Pump
  • Coleman Mach 8- 9200 btu Roof Mount A/C
  • Alde Radiant Heat and Hot Water System (New) (Great option only)

Chassis

  • Dual 20 lb. LP Tanks w/ Auto Changeover
  • 2500 lb. Dexter Torison Axle

See us for a complete list of features and available options!

All features and specifications are subject to change.

Manu-Facts:

ALiner Logo
In the early 1970s, Ralph Tait had an idea. So he went into his garage in Bend, Oregon and began tinkering. Several weeks and a few blisters later, he emerged with a revolutionary design for the first A-frame pop-up camper.

It was sensible. It was different. And it was light enough to be towed with just about any vehicle. Friends wanted one. Family wanted one. Friends of family wanted one. As word of mouth spread, Ralph found himself making more campers out of his garage. That’s when Ralph’s sons had their own bright idea. Why not turn this hobby into a real business?

The family moved to Pennsylvania and began making Aliner campers. Two brothers would build one. The third brother would hitch it to the family station wagon and drive across the country until he sold it. When he returned, the brothers would have another Aliner waiting. After years of hard work and several hundred thousand miles on the poor station wagon, the family retired in 2007. Today we continue to build every Aliner with the same quality, craftsmanship and pride as Ralph and his sons did for over 30 years.
