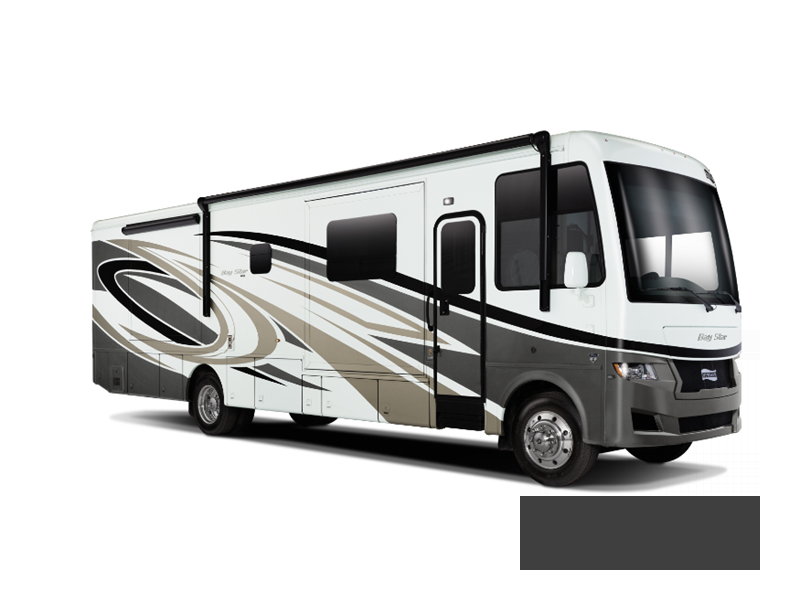

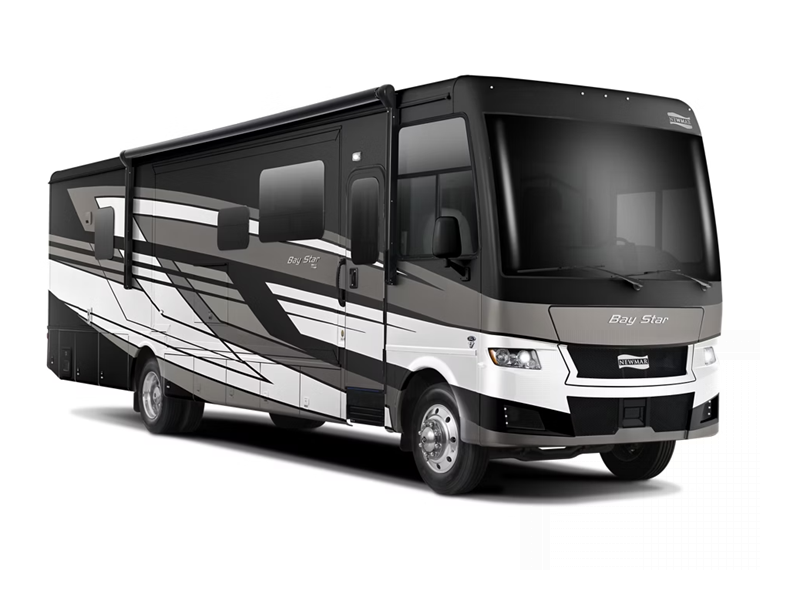

Newmar Bay Star Motor Home Class A

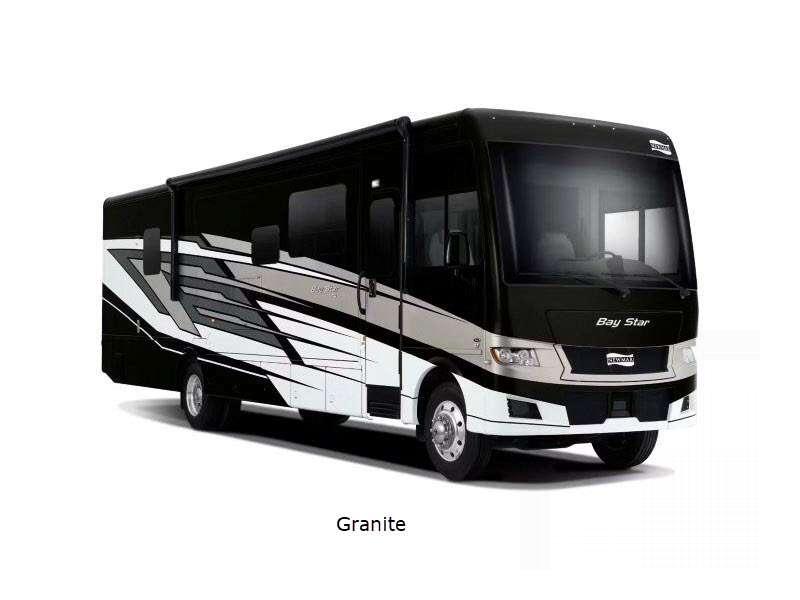

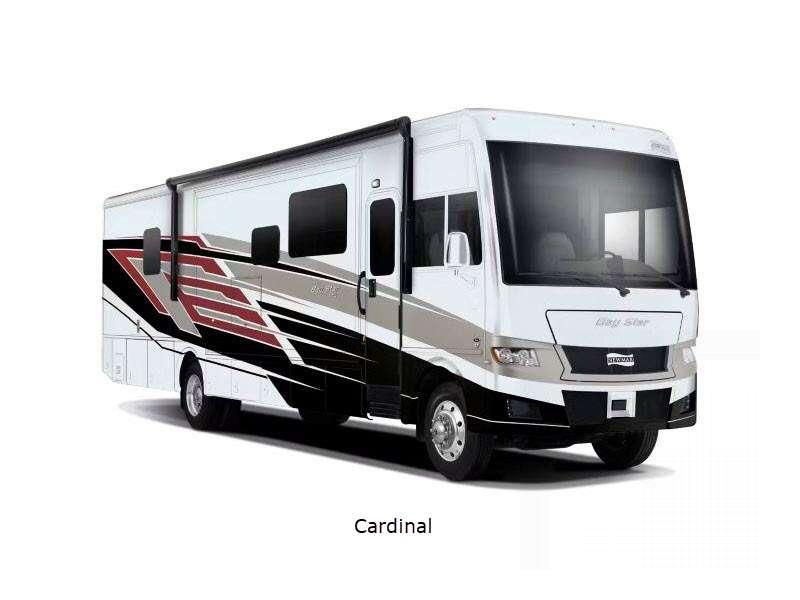

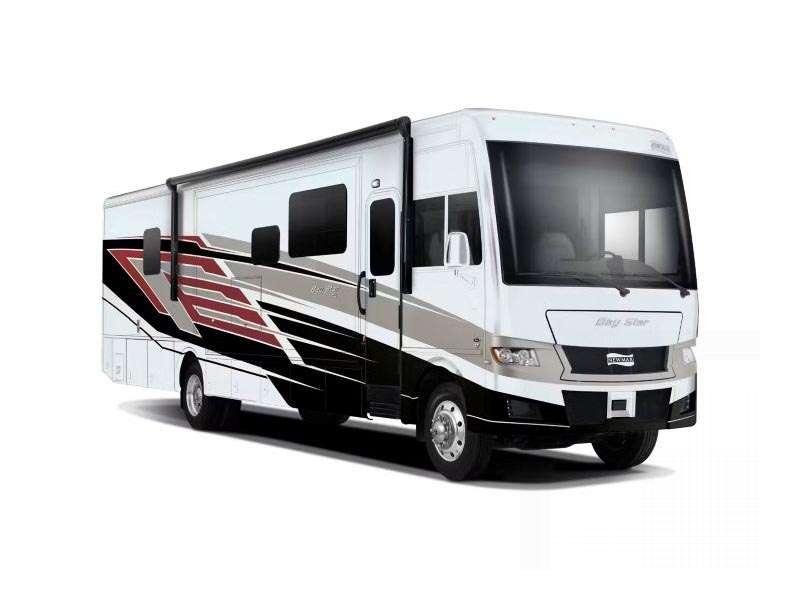

The Bay Star gas Class A from Newmar puts quality construction within reach. These motorhomes simply refuses to look--or feel--like anything less than a luxury RV. Throughout the models you will find stylish cabinet colors, a comfortable master suite, plus a cockpit audio system this is sure to please everyone!
-
Bay Star 3009
Newmar Bay Star class A motor home 3009 highlights: Triple Slide Outs ... more about Bay Star 3009
Have a question about this floorplan? Contact Us
Specifications
Sleeps 6 Slides 3 Length 30 ft 11 in Ext Width 8 ft 6 in Ext Height 12 ft 8 in Int Height 6 ft 8 in Interior Color Intrigue, Whitecap Exterior Color Intrigue, Whitecap Hitch Weight 5000 lbs Gross Weight 22000 lbs Dry Weight 17494 lbs Cargo Weight 4506 lbs Fresh Water Capacity 75 gals Grey Water Capacity 60 gals Black Water Capacity 40 gals Furnace BTU 40000 btu Generator 4.0 kW Cummins Onan Fuel Type Gas Engine Triton V10 Chassis Ford F-53 Horsepower 320 hp Fuel Capacity 80 gals Wheelbase 200 in Available Beds Queen Torque 457 ft-lb Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 3 Shower Size 38" x 26" in Number of Awnings 1 Axle Weight Front 8000 lbs Axle Weight Rear 15000 lbs LP Tank Capacity 25 lbs. Water Heater Capacity 6 gal. AC BTU 13500 btu TV Info LR LED TV, BR TV Awning Info Power Gross Combined Weight 26000 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
Bay Star 3113
Newmar Bay Star class A motor home 3113 highlights: King Bed Triple Slide Outs ... more about Bay Star 3113
Specifications
Sleeps 4 Slides 3 Length 31 ft 11 in Ext Width 8 ft 6 in Ext Height 12 ft 8 in Int Height 6 ft 8 in Interior Color Intrigue, Whitecap Exterior Color Intrigue, Whitecap Hitch Weight 5000 lbs Gross Weight 22000 lbs Dry Weight 17834 lbs Cargo Weight 4166 lbs Fresh Water Capacity 75 gals Grey Water Capacity 60 gals Black Water Capacity 40 gals Furnace BTU 40000 btu Generator 4.0 kW Cummins Onan Fuel Type Gas Engine Triton V10 Chassis Ford F-53 Horsepower 320 hp Fuel Capacity 80 gals Wheelbase 200 in Available Beds King Torque 457 ft-lb Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 3 Shower Size 36" x 36" in Number of Awnings 1 Axle Weight Front 8000 lbs Axle Weight Rear 15000 lbs LP Tank Capacity 25 lbs. Water Heater Capacity 6 gal. AC BTU 13500 btu TV Info LR LED TV, BR LED TV Awning Info Power Gross Combined Weight 26000 lbs Shower Type Radius Electrical Service 30 amp -
Bay Star 3124
Newmar Bay Star class A motor home 3124 highlights: Full Wall Slide Out King Bed ... more about Bay Star 3124
Have a question about this floorplan? Contact Us
Specifications
Sleeps 5 Slides 2 Length 31 ft 11 in Ext Width 8 ft 6 in Ext Height 12 ft 8 in Int Height 6 ft 8 in Interior Color Intrigue, Whitecap Exterior Color Intrigue, Whitecap Hitch Weight 5000 lbs Gross Weight 22000 lbs Dry Weight 18174 lbs Cargo Weight 3826 lbs Fresh Water Capacity 75 gals Grey Water Capacity 60 gals Black Water Capacity 40 gals Furnace BTU 40000 btu Generator 4.0 kW Cummins Onan Fuel Type Gas Engine Triton V10 Chassis Ford F-53 Horsepower 320 hp Fuel Capacity 80 gals Wheelbase 200 in Available Beds King Torque 457 ft-lb Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 3 Shower Size 36" x 36" in Number of Awnings 1 Axle Weight Front 8000 lbs Axle Weight Rear 15000 lbs LP Tank Capacity 25 lbs. Water Heater Capacity 6 gal. AC BTU 13500 btu TV Info Cab TV, BR TV Awning Info Power Gross Combined Weight 26000 lbs Shower Type Radius Electrical Service 30 amp Similar Floorplans
-
Bay Star 3333
Newmar Bay Star class a motor home 3333 highlights: Full Wall Slide Out Large ... more about Bay Star 3333
Have a question about this floorplan? Contact Us
Specifications
Sleeps 4 Slides 3 Length 33 ft 11 in Ext Width 8 ft 6 in Ext Height 12 ft 8 in Int Height 6 ft 8 in Interior Color Intrigue, Whitecap Exterior Color Intrigue, Whitecap Hitch Weight 5000 lbs Gross Weight 22000 lbs Dry Weight 19114 lbs Cargo Weight 2886 lbs Fresh Water Capacity 75 gals Grey Water Capacity 60 gals Black Water Capacity 40 gals Furnace BTU 40000 btu Generator 4.0 kW Cummins Onan Fuel Type Gas Engine Triton V10 Chassis Ford F-53 Horsepower 320 hp Fuel Capacity 80 gals Wheelbase 216 in Available Beds Queen Torque 457 ft-lb Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 3 Shower Size 36" in Number of Awnings 1 Axle Weight Front 8000 lbs Axle Weight Rear 15000 lbs LP Tank Capacity 25 lbs. Water Heater Capacity 6 gal. AC BTU 13500 btu TV Info LR TV, BR TV Awning Info Power Gross Combined Weight 26000 lbs Shower Type Radius Electrical Service 30 amp -
Bay Star 3401
Newmar Bay Star class A motor home 3401 highlights: Full Wall Slide Out 87" ... more about Bay Star 3401
Have a question about this floorplan? Contact Us
Specifications
Sleeps 5 Slides 2 Length 34 ft 11 in Ext Width 8 ft 6 in Ext Height 12 ft 8 in Int Height 6 ft 8 in Interior Color Intrigue, Whitecap Exterior Color Intrigue, Whitecap Hitch Weight 5000 lbs Gross Weight 22000 lbs Dry Weight 19186 lbs Cargo Weight 2814 lbs Fresh Water Capacity 75 gals Grey Water Capacity 60 gals Black Water Capacity 40 gals Furnace BTU 40000 btu Generator 4.0 kW Cummins Onan Fuel Type Gas Engine Triton V10 Chassis Ford F-53 Horsepower 320 hp Fuel Capacity 80 gals Wheelbase 220 in Available Beds King Torque 457 ft-lb Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 3 Shower Size 36" in Number of Awnings 1 Axle Weight Front 8000 lbs Axle Weight Rear 15000 lbs LP Tank Capacity 25 lbs. Water Heater Capacity 6 gal. AC BTU 13500 btu TV Info LR TV, BR TV Awning Info Power Gross Combined Weight 26000 lbs Shower Type Radius Electrical Service 30 amp Similar Floorplans
-
Bay Star 3403
Newmar Bay Star class A motor home 3403 highlights: Bath and a Half Triple Slide ... more about Bay Star 3403
Have a question about this floorplan? Contact Us
Specifications
Sleeps 6 Slides 3 Length 34 ft 11 in Ext Width 8 ft 6 in Ext Height 12 ft 8 in Int Height 6 ft 8 in Interior Color Intrigue, Whitecap Exterior Color Intrigue, Whitecap Hitch Weight 5000 lbs Gross Weight 22000 lbs Dry Weight 19178 lbs Cargo Weight 2822 lbs Fresh Water Capacity 75 gals Grey Water Capacity 60 gals Black Water Capacity 92 gals Furnace BTU 40000 btu Generator 4.0 kW Cummins Onan Fuel Type Gas Engine Triton V10 Chassis Ford F-53 Horsepower 320 hp Fuel Capacity 80 gals Wheelbase 216 in Available Beds Queen Torque 457 ft-lb Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 3 Shower Size 40" x 26" in Number of Awnings 1 Axle Weight Front 8000 lbs Axle Weight Rear 15000 lbs LP Tank Capacity 25 lbs. Water Heater Capacity 6 gal. AC BTU 13500 btu TV Info LR TV, BR TV Awning Info Power Gross Combined Weight 26000 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
Bay Star 3406
Newmar Bay Star class A motor home 3406 highlights: Triple Slide Outs Flip Up ... more about Bay Star 3406
Have a question about this floorplan? Contact Us
Specifications
Sleeps 6 Slides 3 Length 34 ft 11 in Ext Width 8 ft 6 in Ext Height 12 ft 8 in Int Height 6 ft 8 in Interior Color Intrigue, Whitecap Exterior Color Intrigue, Whitecap Hitch Weight 5000 lbs Gross Weight 22000 lbs Dry Weight 18540 lbs Cargo Weight 3460 lbs Fresh Water Capacity 75 gals Grey Water Capacity 60 gals Black Water Capacity 40 gals Furnace BTU 40000 btu Generator 4.0 kW Cummins Onan Fuel Type Gas Engine Triton V10 Chassis Ford F-53 Horsepower 320 hp Fuel Capacity 80 gals Wheelbase 220 in Number Of Bunks 1 Available Beds Queen Torque 457 ft-lb Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 3 Shower Size 40" x 26" in Number of Awnings 1 Axle Weight Front 8000 lbs Axle Weight Rear 15000 lbs LP Tank Capacity 25 lbs. Water Heater Capacity 6 gal. AC BTU 13500 btu TV Info LR TV Awning Info Power Gross Combined Weight 26000 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
Bay Star 3414
Newmar Bay Star class A motor home 3414 highlights: Triple Slide Outs ... more about Bay Star 3414
Specifications
Sleeps 4 Slides 3 Length 34 ft 11 in Ext Width 8 ft 6 in Ext Height 12 ft 8 in Int Height 6 ft 8 in Interior Color Intrigue, Whitecap Exterior Color Intrigue, Whitecap Hitch Weight 5000 lbs Gross Weight 22000 lbs Dry Weight 19178 lbs Cargo Weight 2822 lbs Fresh Water Capacity 75 gals Grey Water Capacity 60 gals Black Water Capacity 40 gals Furnace BTU 40000 btu Generator 4.0 kW Cummins Onan Fuel Type Gas Engine Triton V10 Chassis Ford F-53 Horsepower 320 hp Fuel Capacity 80 gals Wheelbase 220 in Available Beds Queen Torque 457 ft-lb Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 3 Shower Size 40" x 26" in Number of Awnings 1 Axle Weight Front 8000 lbs Axle Weight Rear 15000 lbs LP Tank Capacity 25 lbs. Water Heater Capacity 6 gal. AC BTU 13500 btu TV Info LR LED TV, BR TV Awning Info Power Gross Combined Weight 26000 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
Bay Star 3518
Newmar Bay Star class A motor home 3518 highlights: Triple Slide Outs King Bed ... more about Bay Star 3518
Have a question about this floorplan? Contact Us
Specifications
Sleeps 7 Slides 3 Length 35 ft 11 in Ext Width 8 ft 6 in Ext Height 12 ft 8 in Int Height 6 ft 8 in Interior Color Intrigue, Whitecap Exterior Color Intrigue, Whitecap Hitch Weight 5000 lbs Gross Weight 24000 lbs Dry Weight 19322 lbs Cargo Weight 4668 lbs Fresh Water Capacity 75 gals Grey Water Capacity 60 gals Black Water Capacity 40 gals Furnace BTU 40000 btu Generator 4.0 kW Cummins Onan Fuel Type Gas Engine Triton V10 Chassis Ford F-53 Horsepower 320 hp Fuel Capacity 80 gals Wheelbase 228 in Available Beds King Torque 457 ft-lb Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 3 Shower Size 40" x 26" in Number of Awnings 1 Axle Weight Front 9000 lbs Axle Weight Rear 15500 lbs LP Tank Capacity 25 lbs. Water Heater Capacity 6 gal. AC BTU 13500 btu TV Info LR LED TV, BR TV Awning Info Power Gross Combined Weight 30000 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
Bay Star 3532
Newmar Bay Star class A motor home 3532 highlights: Triple Slide Outs ... more about Bay Star 3532
Have a question about this floorplan? Contact Us
Specifications
Sleeps 6 Slides 3 Length 35 ft 11 in Ext Width 8 ft 6 in Ext Height 12 ft 8 in Int Height 6 ft 8 in Interior Color Intrigue, Whitecap Exterior Color Intrigue, Whitecap Hitch Weight 5000 lbs Gross Weight 24000 lbs Dry Weight 19322 lbs Cargo Weight 4668 lbs Fresh Water Capacity 75 gals Grey Water Capacity 60 gals Black Water Capacity 40 gals Furnace BTU 40000 btu Generator 4.0 kW Cummins Onan Fuel Type Gas Engine Triton V10 Chassis Ford F-53 Horsepower 320 hp Fuel Capacity 80 gals Wheelbase 228 in Available Beds Queen Torque 457 ft-lb Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 3 Shower Size 40" x 26" in Number of Awnings 1 Axle Weight Front 9000 lbs Axle Weight Rear 15500 lbs LP Tank Capacity 25 lbs. Water Heater Capacity 6 gal. AC BTU 13500 btu TV Info LR LED TV, BR TV Awning Info Power Gross Combined Weight 30000 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
Bay Star Features:
Standard Features
- Exterior Masterpiece™ Full Painted Graphics with Clearcoat Finish
- Dura Shield Protection on Front Cap

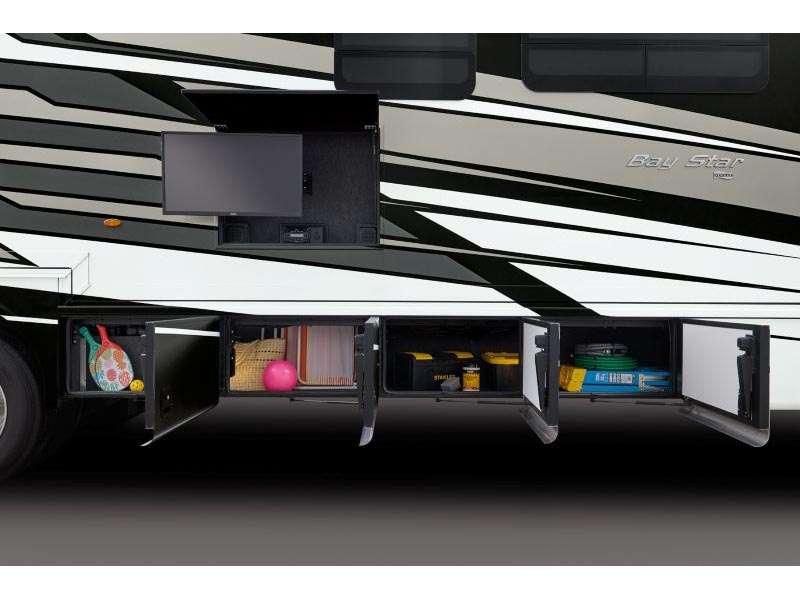

- Lighted Exterior Storage Compartments
- Automatic Step for Entrance Door
- Convex Exterior Mirrors with Defrost
- Rear Hitch for Towing Car
- Assist Handle at Entrance Door
- Undercoating
- Mud Flaps
- Hydraulic Leveling Jacks
- Exterior Kitchen*
Options
- Convex Exterior Mirrors with Defrost and Remote Control
- Rear Ladder
- Flag Pole Bracket
- Temporary Windshield Protection for Transport
- BriteTEK Roof with Walkable Deck
- Gelcoated Fiberglass Exterior Sidewalls, Front & Rear Caps
- Aluminum-Frame Sidewalls & Roof Construction, on 16" Center
- 5/8" Foam Insulation Laminated in Sidewalls & Ceiling
Options
- Polar Pak R19 batten Insulation in Roof

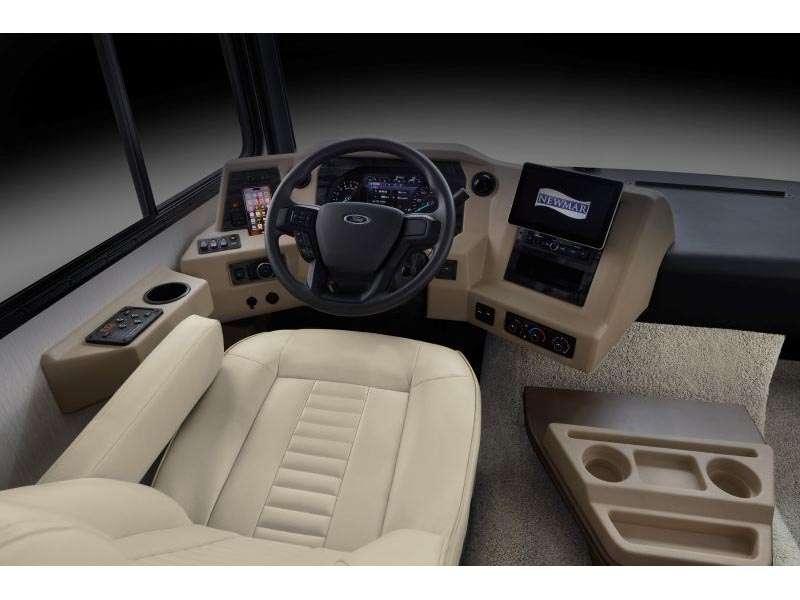

Chassis
- Ford® F-53 Chassis 22,000 lb. on 30’-34' Floor Plans
- Ford® F-53 Chassis 24,000 lb. on 35' Floor Plans
- Cruise Control
- Tilt Steering Wheel
- Aluminum Wheels
- One Piece Tinted Windshield
- Frameless Single Pane Tinted Safety-Glass Windows
- Power Vent in Kitchen and Bathroom
- Skylight Above Shower
- Dometic® Weather Pro Side Awning with Aluminum Weather Shield
- Slideout Covers
Options
- Frameless Double-Pane Tinted Safety Glass Windows
- Rear Window in Bedroom*
- Fantastic Vent with Rain Sensor in Kitchen & Bathroom
- Bunk Windows*
Air Conditioning & Heating
- 13.5M Brisk® Central Air Conditioner
- Dash Heater and Air Conditioner
- Defrost Fans Built into Front Overhead
- Propane Gas Furnace with Ducted Heat
Options
- 15.0M Penguin, Heat Pump Air Conditioner*
- Two 13.5 Penguin Heat Pump A/C, 5.5 Onan Generator, 50 Amp Electrical Service with Energy Management System*
- Auxillary Heater in Bedroom
Electrical
- 4.0 kW Cummins Onan® Generator with Remote Switch and Automatic Changeover
- 30 Amp Electrical Service with Flexible Cord and Automatic Transfer Switch
- Two 12 Volt House Batteries
- Battery Disconnect Switch for House Battery
- 12 Volt Auxiliary Receptacle on Dashboard
- 45 Amp Converter
- Daytime Running Lights
- Emergency Engine Start Switch
- LED Ceiling Lights
- Manually Operated Hold-To-Run Slideout Switch
- Cable TV Connection
- 10 Watt Solar Panel to Charge Chassis Battery
- 1000 Watt Inverter Run to Drain Lift Pump & TV™s on 3403 & 3712 Floorplans
- Lights in Wardrobes
- USB Chargers at Driver/Passenger Seat Area
Options
- 1000 Watt Inverter Ran to TVs*
- 50 Amp Electrical Service*
- Solar Prep Rated for 1200 Watts with Six Gauge Wire from Roof to House Battery Compartment

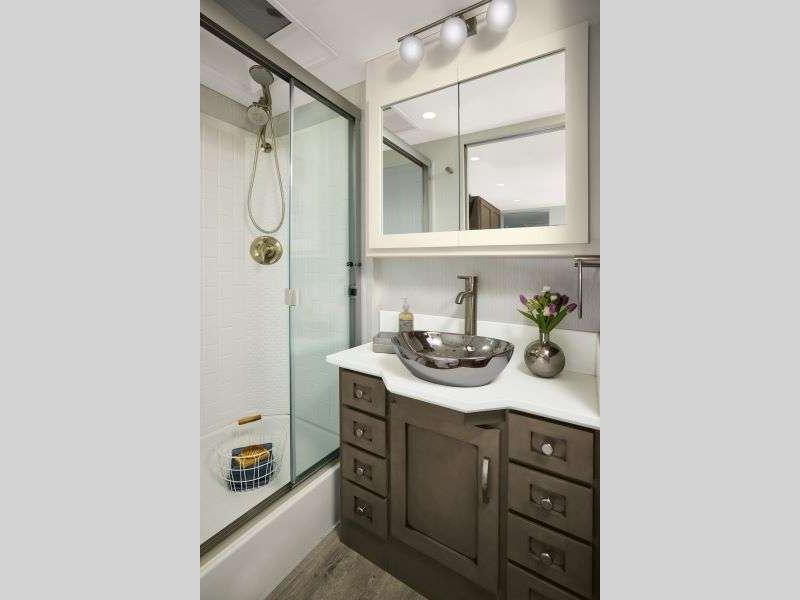

Plumbing & Bath
- Demand Water System
- Sewage Holding Tank Rinse
- Water Heater Bypass System
- Dometic® 310 China Bowl Stool

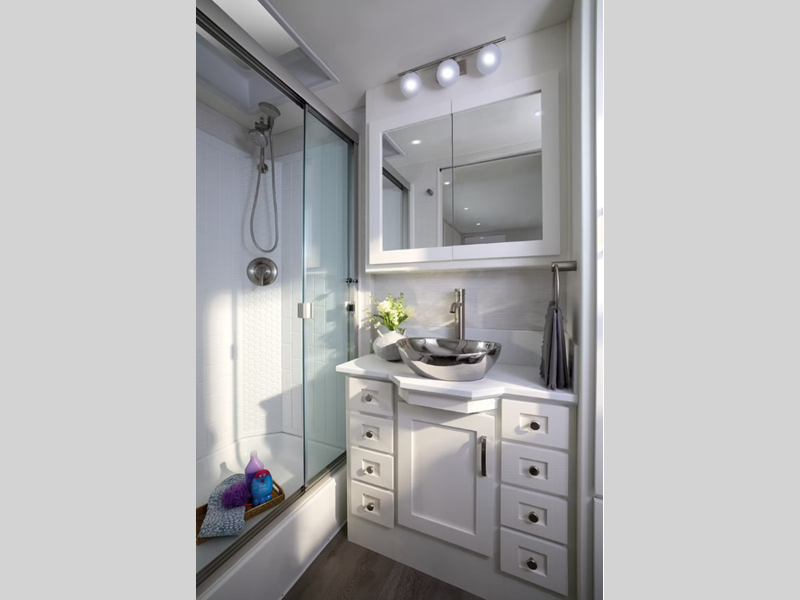

- ABS Shower Surround with Shower Door
- Systems Monitor Panel
- Exterior Shower
Options
- Water Filter for Entire Unit

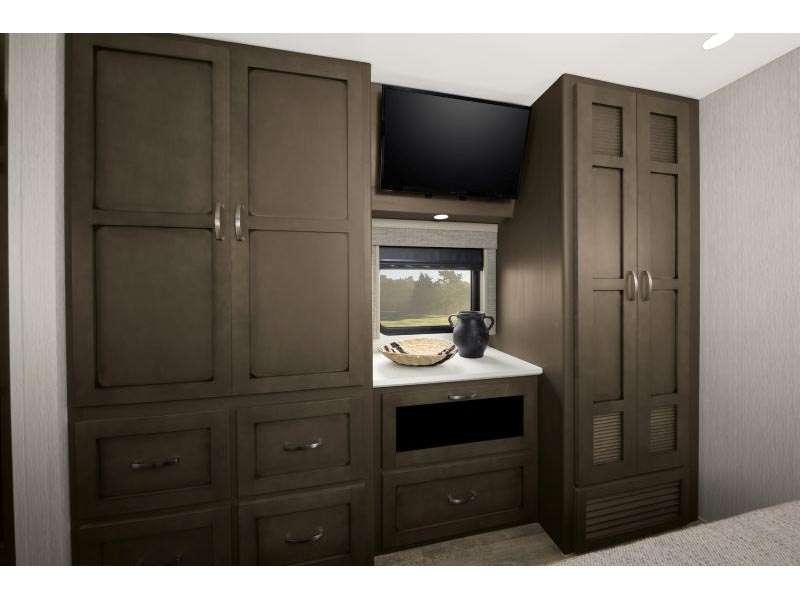

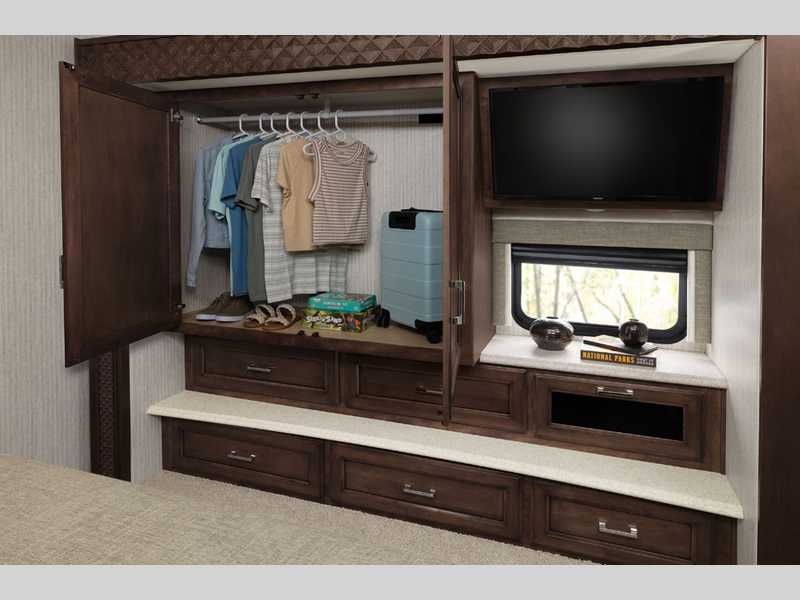

Cabinets & Furniture

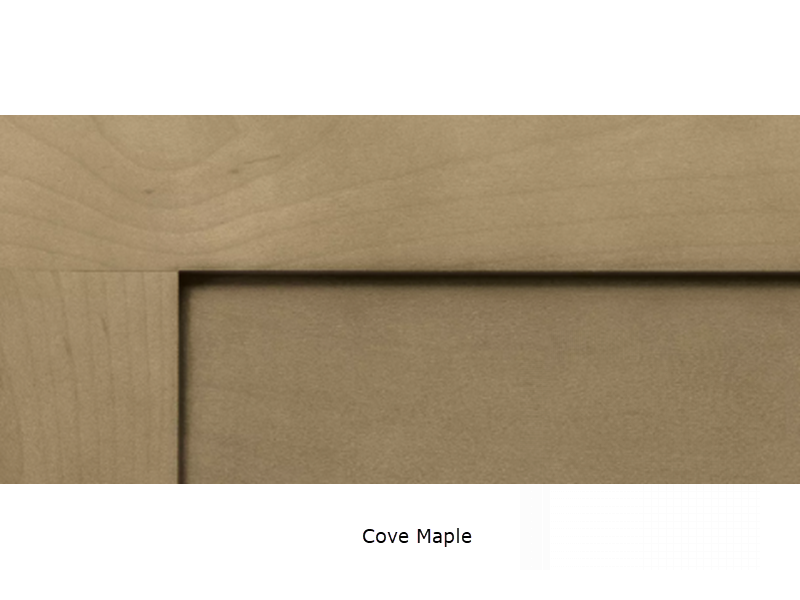

- Calypso Glazed Maple Mitered Designer Cabinet Doors-Opt. Matte Finish
- Drawers with Full-Extension Guides
- Polished Solid Surface Countertop in Kitchen with Stainless Steel Sink
- Solid Surface Countertops in Bathroom and Bedroom
- Flexsteel® Ultralux Leather Sofa and Front Seats
- Lifts on Bed Top
- Smooth-Top Mattress
- Passenger Seat Work Station
- Manual Foot Rest on Passenger Seat

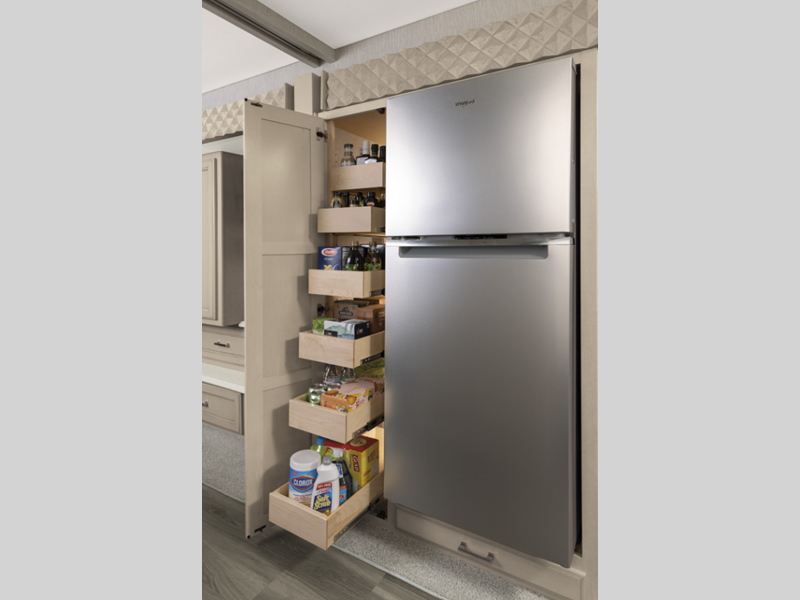

- Pullout Pantry Shelves*
- Concealed Hinges on Cabinet Doors
- Drop Down Bunk Bed Over Driver/Passenger Seats with Electric Latches and 32" TV in Front Overhead*
Options
- Astoria Glazed Maple Mitered Designer Cabinets-Opt. Matte Finish
- Sienna Glazed Maple Mitered Designer Cabinets-Opt. Matte Finish
- Combination Desk with Buffet Dinette Table, 2 Fixed & 2 Folding Chairs
- Combination Desk/Dinette with Free Standing Hidden Leaf Table, 2 Fixed & 2 Folding Chairs
- Buffet Dinette with Free Standing Table
- Buffet Dinette
- Free Standing Hidden Leaf Dinette Table, 2 Fixed & 2 Folding Chairs*
- Drop Down Bunk Bed Over Driver/Passenger Seats with Electric Release Latches*
- Plush Pillow Top Mattress
- Folding Cockpit Table
- Hide A Bed Sofa
- Off Door Side-Side Opening Hide-A-Bed Sofa*
- Off Door Side 74 Fold & Tumble Sofa with Air Mattress*
- Side Opening Hide-A-Bed Sofa*
- Six Way Power for Driver Seat
- 84" Hide-A-Bed Sofa*
- 87" Bunk Sofa*

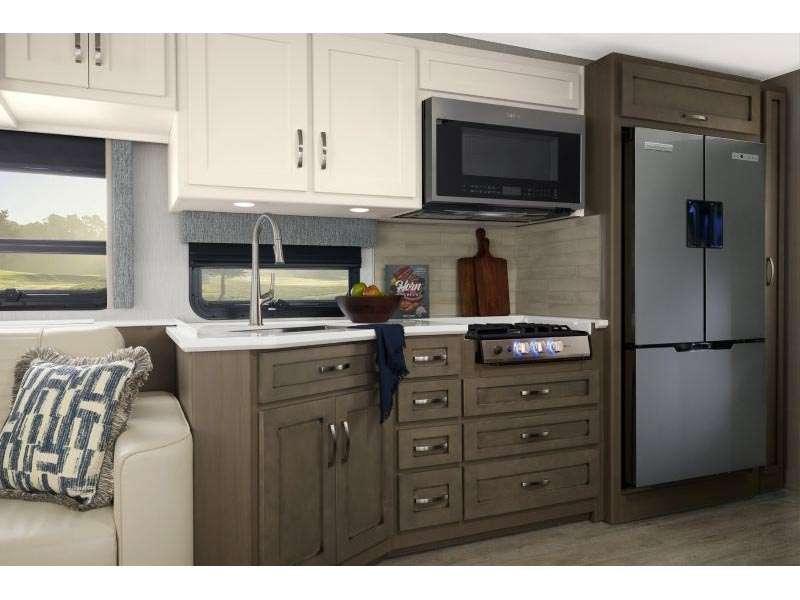

Appliances
- Three-Burner Range with Oven
- 30" Over the Range Microwave
- Norcold® 8 Cf. Refrigerator
- Raised Panel Refer Door Insert Panel
- 6 gal. Gas/Electric Water Heater with Electronic Ignition
Options
- Frigidaire 10 Cf. Regrigerator with Dedicated 1000 Watt Pure Sine Inverter & 2 Extra Batteries
- Norcold 12 Cf. 4-Door Regrigerator with Icemaker
- Icemaker Added to Standard Norcold Refrigerator with Heated Water Line
- 30" Convection Microwave with 3 Burner Cooktop
- Fireplace in Living Area (Requires 50amp Service Option)*
- 110 Volt Heat Pads for Holding Tanks
- Icemaker Added to Standard Norcold Refrigerator
Interior
- Vinyl Ceiling Panels
- Decorative Wall Art
- Vinyl Floor in Kitchen, Living Area and Bathroom
- Carpeting in Bedroom and on Slideout floors
- Interior Assist Handle at Main Entrance Door
- Quilted Bedspread, Bed Scarf & Accent Pillow
- Inlayed Six Panel Design Interior Passenger Doors
- Auto Motion Manual Double Roller Shades on Windows Behind Driver/Passenger Area
- Auto Motion Power Shade at Windshield & Manual Shades at Driver & Passenger Side Windows
- Dash Panel Color Coordinated ABS
- 10 Bc Fire Extinguisher, Smoke Detector, Propane and Carbon Monoxide Detector
- Shoe Storage Located in Entrance Door Step Compartment
- Waste Basket in Kitchen Base
Options
- Vinyl Tile Floor in Place of Vinyl Floor
Audio, Video & Accessories
- Sony LED TV & DVD Player in Living and Bedroom Areas (TV sizes vary per floorplan)
- Dash Radio/CD Player with Harman/JBL 180 Watt Sound System
- Rearview Colored Monitor System with Audio
- Winegard Digital TV Antenna
- Satellite Dish Prep on Roof
- High Definition Component Wiring
- TV Jack and 110 Volt Recept in Door Side Exterior Storage Compartment
- Bluetooth Microphone for Sony Dash Radio
Options
- 32" LED TV in Front Overhead
- 32" LED TV in Exterior Storage Compartment*
- 32" LED TV Exterior TV Only*
- Blu-Ray Disc Players
- Side View Cameras Displayed onto Rear View Monitor Screen
- Sirius Radio Capability with Antenna (Does Not Include Monthly Subscription)
- Bose Solo 5 Sound Bar Sound System
- WiFi Ranger Skypro Pack Router
- Xite Dash Radio, 6 Monitor with Rand McNally Navigation
- Winegard Automactic Open Face Satellite Dish
- Winegard® Automatic Dome Satellite Dish
- Winegard in Motion Dome Satellite Dish
- Winegard Automatic Open Face Swm Satellite
- Winegard Cellular In Motion WiFi
- Winegard Cellular in Motion WiFi Prep
See us for a complete list of features & available options!
All standard features and specifications are subject to change.
Manu-Facts:
Newmar began by building high-quality travel trailers. In 1971, the company introduced the Kountry Aire fifth wheel, making Newmar one of the first and largest fifth wheel builders in the industry.
Newmar continued to grow at a rapid pace through the 1970s. In 1984, Mahlon Miller, who at the time was president of the Holiday Rambler Corporation, left his position and purchased a 51% stake in the Newmar Corporation.
In the 1980s, Newmar entered the Class A market, building premium-quality motor coaches in small numbers. In 1990, the company introduced two iconic motor coaches that still exist today: Dutch Star and Mountain Aire. At the same time, Newmar began pioneering concepts and features that would change the industry, including the first traditional slideouts and flush floor slideouts ever featured in a Class A coach.
In 1991, Mahlon Miller purchased the remaining 49% of Newmar Corporation, becoming sole owner. Just one year later, the company built a new, 116,000 square foot, state-of-the-art manufacturing facility in Nappanee, helping to further centralize production.
By the late 1990s, Newmar became the first to offer full body paint on both its towable and motor coach products. To support the growth of this innovative practice and ensure superior quality, Newmar added a 45,000 square foot paint facility. Then, in 2004, a 150,000 square foot chassis prep and welding facility was added to accommodate the growing complexities that come with manufacturing top-quality motor coaches.
In 2006, Mahlon Miller’s son Matt became Newmar’s new president. When the economic recession arrived soon thereafter, Matt Miller insisted Newmar stay the course by maintaining its commitments to dealers and customers. In 2012, Newmar exited the fifth wheel segment that helped shape the company decades earlier, choosing to focus entirely on crafting the finest Class A motorhomes the industry had ever seen.
Today, Newmar is stronger than ever thanks to an unwavering commitment to service, quality and innovation that remains unmatched.
