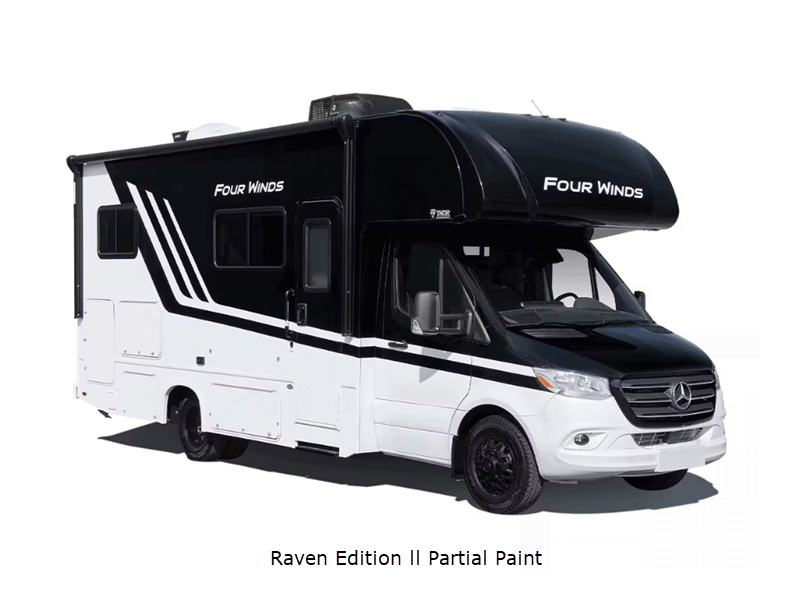

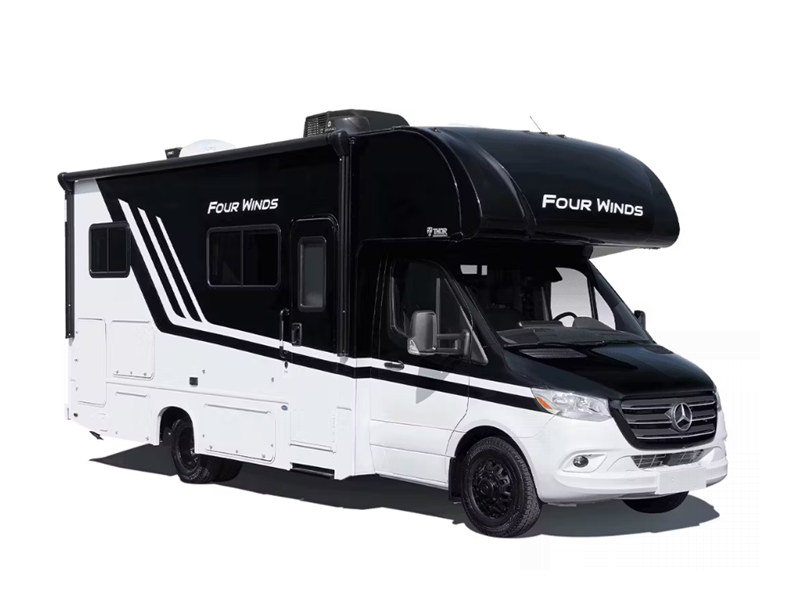

Thor Motor Coach Four Winds Sprinter Motor Home Class C - Diesel

Previous
Next
1 of 18
The Four Winds Sprinter by Thor Motor Coach is here to provide you with a way to make all of your travel dreams come true. This class C diesel motorhome has everything you need to create the home on wheels that will fit you and your family just right!

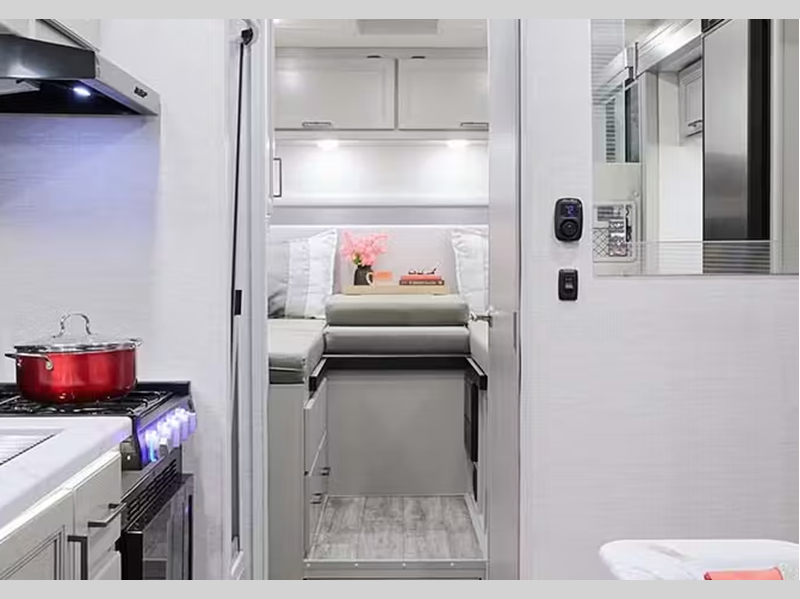

Built upon the Mercedes-Benz Sprinter chassis, you can rest assured that each and every ride will be dependable and comfortable. You will love the sleek fiberglass exterior in one of four color choices, and you will also appreciate having power windows and door locks, as well as a power patio awning with integrated LED lighting. The interior will entice you with all of its fabulous features, like the laminate countertops, Denver Mattress, residential vinyl flooring, and 84" ceilings.

Why not start living your dreams today by choosing a new Thor Motor Coach Four Winds Sprinter class C diesel motorhome? You are sure to be impressed with all that it has to offer!
  • Four Winds Sprinter 24BL

    Four Winds Sprinter 24BL Floorplan Image

    Take a Virtual Tour

    Thor Motor Coach Four Winds Sprinter Class C diesel motorhome 24BL highlights: ... more about Four Winds Sprinter 24BL

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Length 24 ft 8 in
    Ext Width 7 ft 6 in
    Ext Height 11 ft 7 in
    Int Height 7 ft
    Interior Color Gemstone, Nautical Blue, Summit Grey

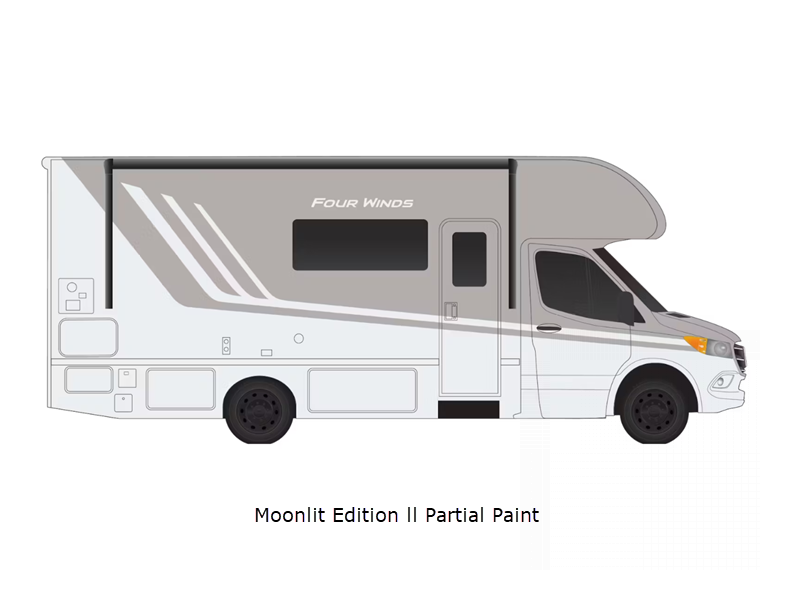

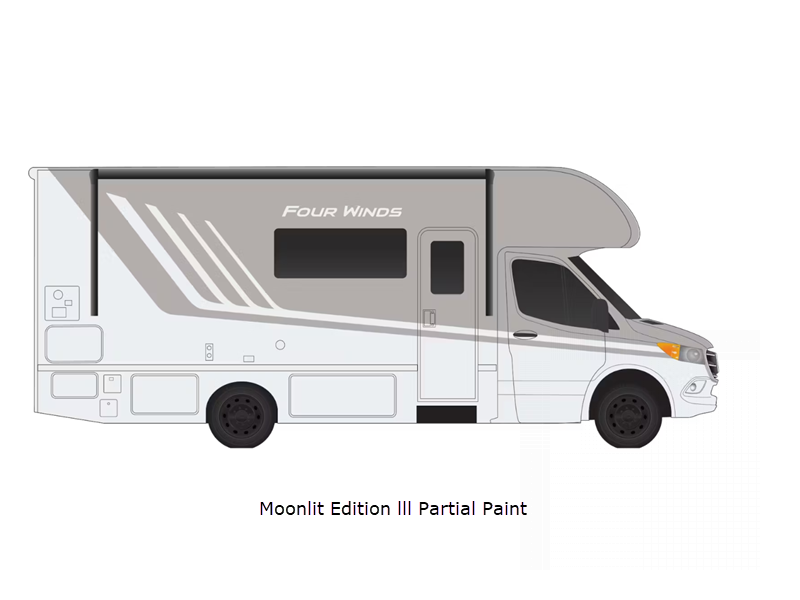

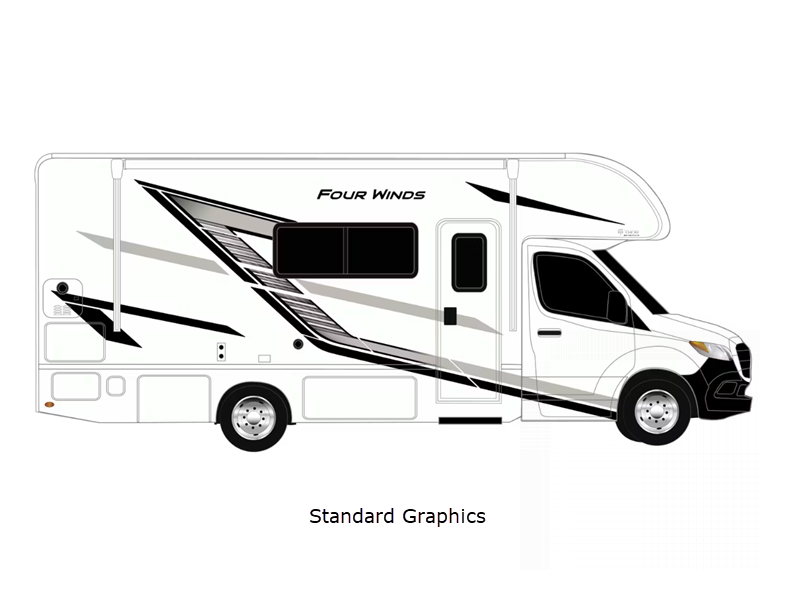

    Exterior Color Cosmopolitan, Vanilla Swirl on HD-MAX. Castle Rock, Whistling Straits Full Body Paint
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 30 gals
    Grey Water Capacity 38 gals
    Black Water Capacity 24.5 gals
    Furnace BTU 30000 btu
    Generator Onan RV QG 3600 LP
    Fuel Type Diesel
    Engine 3.0L V6
    Chassis Mercedes-Benz Sprinter 3500
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170.3 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 325 ft-lb
    Refrigerator Type Double Door Gas/Electric
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 24" x 32"
    Number of Awnings 1
    LP Tank Capacity 68.2 gals
    Water Heater Type Tankless
    AC BTU 13500 btu
    Basement Storage 48.5 cu. ft.
    TV Info LR 32" TV
    Awning Info 16' Electric with LED Lights
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Four Winds Sprinter 24DS

    Four Winds Sprinter 24DS Floorplan Image

    Thor Motor Coach Four Winds Sprinter Class C diesel motorhome 24DS highlights: ... more about Four Winds Sprinter 24DS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 25 ft 8 in
    Ext Width 7 ft 6 in
    Ext Height 11 ft 11 in
    Int Height 7 ft
    Interior Color Gemstone, Nautical Blue, Summit Grey
    Exterior Color Cosmopolitan, Vanilla Swirl on HD-MAX. Castle Rock, Whistling Straights Full-Body Paint
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 30 gals
    Grey Water Capacity 38 gals
    Black Water Capacity 34.5 gals
    Furnace BTU 30000 btu
    Generator Onan RV QG 3600 LP
    Fuel Type Diesel
    Engine 3.0L V6
    Chassis Mercedes-Benz Sprinter
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170.3 in
    Number Of Bunks 1
    Available Beds Full
    Torque 325 ft-lb
    Refrigerator Type Double Door Gas/Electric
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 24" x 32"
    Number of Awnings 1
    LP Tank Capacity 68.2 gals
    Water Heater Type Tankless
    AC BTU 13500 btu
    Basement Storage 47 cu. ft.
    TV Info LR 40" TV
    Awning Info 16' Electric with LED Lights
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

Four Winds Sprinter Features:

Standard Features (2020)

Construction & Exterior
  • Mercedes-Benz Sprinter - 3.0L V6 188HP 325 lb-ft Torque
  • 5,000 lb. Trailer Hitch
  • Electric Stabilizing System
  • Welded Tubular Steel Floor
  • Welded Tubular Aluminum Roof & Sidewall Cage Construction
  • Vacu-Bond Laminated Roof, Walls & Floors w/Block Foam Insulation
  • One-Piece Fiberglass Front Cap

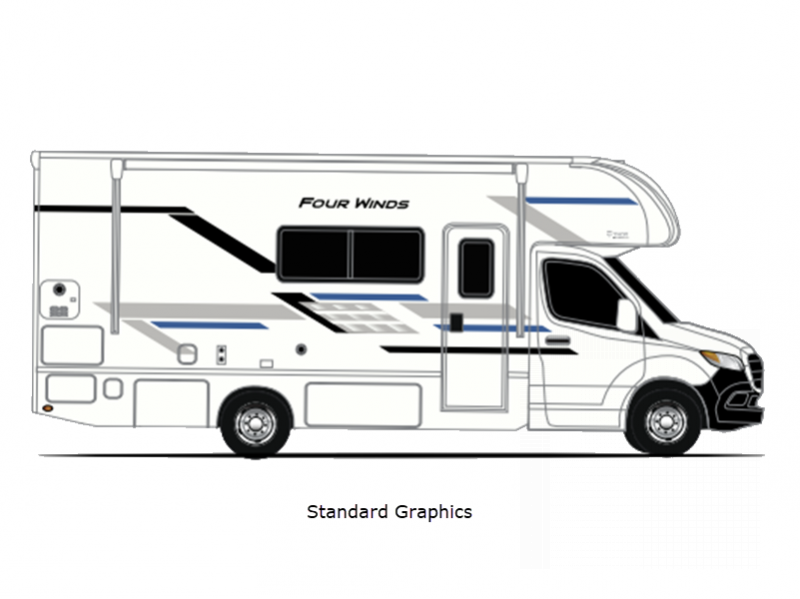

  • HD-Max Exterior with Graphics Package
  • Full-Body Paint Package w/Protective Mask (Optional)
  • Exterior Mega-Storage Compartment (N/A 24DS)
  • Lighted Rotocast Storage Compartments
  • Flush Mount Radius Compartment Doors
  • Premium One-piece TPO Roof
  • Power Patio Awning with integrated LED lighting
  • Slide out Room Topper Awning(s)
  • Roof Ladder
  • Exterior Grab Handle
  • Electric Entry Step
  • Entry Door with Deadbolt Lock
  • Black Framed Windows
Automotive & Cockpit

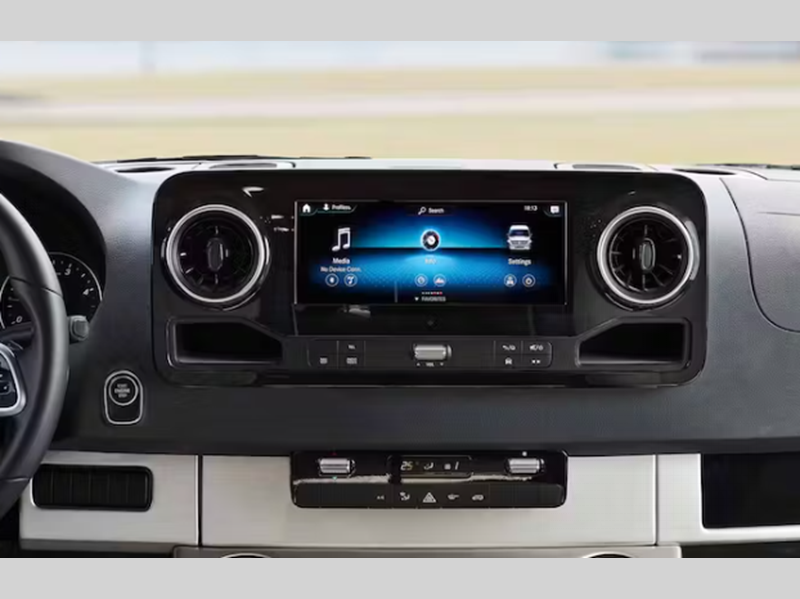

  • Touchscreen Dash Stereo w/Back-up Monitor w/Integrated Camera
  • Sirius Tuner and Antenna
  • Deluxe Heated/Remote Exterior Mirrors
  • Power Window and Door Locks
  • Cruise Control
  • Tilt Leather Steering Wheel w/Audio Buttons to Control Dash Stereo
  • Map Light
  • Sun Visors
  • Windshield Privacy Curtain
  • Drink Holders
  • Three-point Seatbelts for the Driver & Passenger
  • Swivel Leatherette Captain's Chairs with Skirts
  • Driver and Passenger Air Bags
  • Cockpit Carpet Mat (Optional)
  • Keyless Entry System
  • Stainless Steel Wheel Liners
  • Valve Stem Extensions Front and Rear Wheels
  • Dash Applique Only with 2019 Sprinter Chassis (Optional)
Interior
  • 84" Interior Ceiling Height
  • Residential Vinyl Flooring
  • Rubber Tread Entry Steps with Step Well Light
  • Metal Entry Grab Handle
  • Smoke, LPG, Carbon Monoxide Detectors
  • Fire Extinguisher
  • Hard Vinyl Ceiling
  • Ceiling Ducted Air Conditioning System
  • High-Sheen Cabinetry with Raised Panel Upper Cabinet Doors and Nickel Finish Hardware
  • Raised Panel Upper Cabinet Doors
  • Laminate Countertops
  • LED Lighting
  • Wall Cubby with Net & USB Charging Port
  • Cab-Over-Bunk Ladder
  • Cab Over Bunk Safety Child Net (Optional)
  • Leatherette Theater Seating with Footrests (N/A 24BL)
  • Leatherette Booth Dinette with (2) storage drawers (N/A 24BL)
  • Leatherette Dream Dinette Booth (N/A 24DS)
  • Passenger Seatbelts in Select Areas
  • Single Child Safety Seat Tether in Dinette (Optional 24BL) (N/A 24DS)
  • Premium Window Privacy Roller Shades
  • Full Extension Metal Ball-Bearing Drawer Guides
  • 12-volt Attic Fan w/Cover in Cab-Over Bunk (Optional)

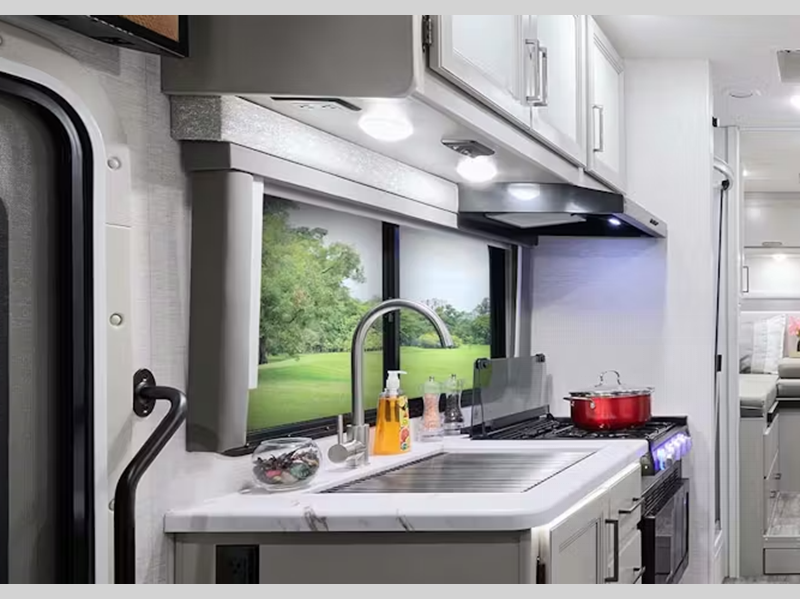

Kitchen
  • Double Door Gas/Electric RV Refrigerator
  • Upgraded Recessed 3-Burner Gas Cooktop with Glass Cover (N/A 24DS)
  • Two Burner Gas Cooktop, Glass Cover, w/Electric Start (N/A 24BL)
  • Protective Cover & Task Lighting Above Cooktop
  • Convection Microwave Oven
  • Flip-Up Countertop Extension
  • Large Single Bowl Stainless Steel Sink w/Single Handle Faucet w/Pull-Down Sprayer (N/A 24DS)
  • Large Round Single Bowl Stainless Steel Sink w/Single Handle Faucet w/Pull-Down Sprayer, Add Sink Cover (N/A 24BL)
  • Wood Framed Mirror behind Sink (N/A 24BL)
  • Kitchen Waste Basket
  • 12-volt Ceiling Vent in Kitchen with Under Cabinet Switch
Bedroom & Bathroom
  • Denver Mattress® Full Size Bed (N/A 24BL)
  • Denver Mattress® Queen Size Bed (N/A 24DS)
  • Bedspread and Pillow Shams
  • Bedroom USB Power Charging Center for Electronics
  • Bedroom 12V Outlet for CPAP Machine
  • Power Bath Vent w/Wall Switch
  • Foot Flush Toilet
  • Stainless Steel Bathroom Sink
  • Wallpaper Border Bath
  • Three Robe Hooks inside Bath
  • Skylight in Shower
  • Shower with Curved Anti-Microbial Shower Curtain
  • 12-volt Attic Fan with Cover in Bedroom (Optional)
Entertainment
  • 32” TV on Manual Swivel Over Entry Door (N/A 24DS)
  • 40" Mid-Ship TV in Living Area w/Blu-Ray Player (N/A 24BL)
  • 32” TV in Bedroom (Optional)
  • Exterior 32” TV on Swivel Bracket with Bluetooth® Sound Bar and Radio (Optional)
  • HDMI Video Distribution Box
  • Cable TV Ready
  • HD/DSS Satellite Ready
Electrical & Plumbing
  • Onan® RV QG 3600 LP Generator
  • Onan® RV QD 3200 Diesel Generator (Optional)
  • Winegard Connect 2.0 WiFi/4G/TV Antenna
  • 30-amp Shoreline Power Cord
  • Automatic Shoreline-to-Generator Transfer Switch
  • 13,500 BTU Front Air Conditioner
  • Battery Disconnect Switch
  • Second Auxiliary House Battery (Optional)

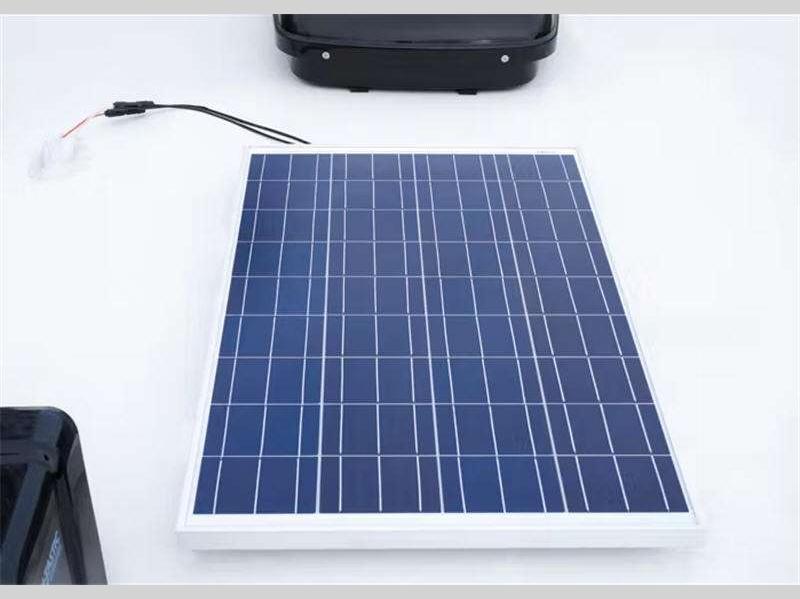

  • Solar Prep (includes solar controller)
  • Tankless Water Heater
  • Outside Shower
  • 360 Siphon RV Holding Tank Vent Cap
  • 1” Fresh Water Tank Drain
  • Exterior LP Connection
  • Holding Tanks with Heat Pads (Optional)
  • Black Tank Flush System
  • Sewer Hose Storage Area
  • Systems Control Center
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.

Manu-Facts:

Thor Motor Coach (TMC) is the #1 Motorhome Brand in North America, producing nearly 1 out of every 4 motorhomes sold each year. Formed in 2010 as a strategic merger of Damon Motor Coach and Four Winds International, we build many of the world’s most recognized motorhomes. As an industry leader in introducing cutting­edge innovations, we offer a wide range of styles, sizes, floor plans and features – delivering coaches that fit every customer’s lifestyle and budget.

Our diverse product lineup includes many of the world’s most recognized gas­ and diesel­ powered Class A and Class C motorhomes, including the Four Winds, Challenger, Chateau, ACE and Tuscany models. By building a variety of unique styles, sizes and floor plans, we offer motorhomes that feel custom ­made – at a truly competitive price.

With so many unique models available, TMC motorhomes are priced to fit anyone’s budget – from families buying their first motorhome, to full­timers looking for a roaming “dream home.” No matter how you choose to spend your time or your money, there’s a TMC motorhome that fits your needs.
