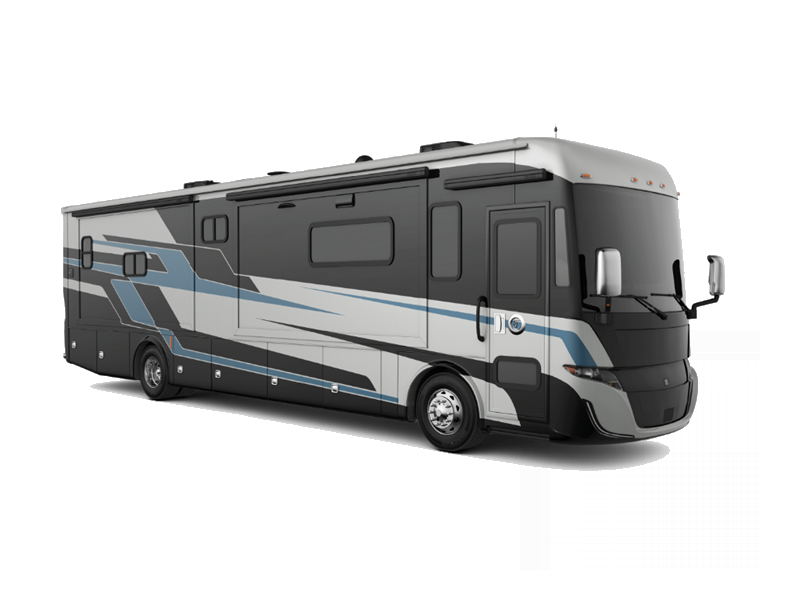

The Byway Class A diesel coach is Tiffin Motorhomes most affordable diesel motorhome, allowing you to enjoy luxury travel without breaking the bank! Each model sits on a durable Freightliner XCS straight rail rear chassis with a powerful Cummins B6.7 340 HP engine to keep you going all year long.

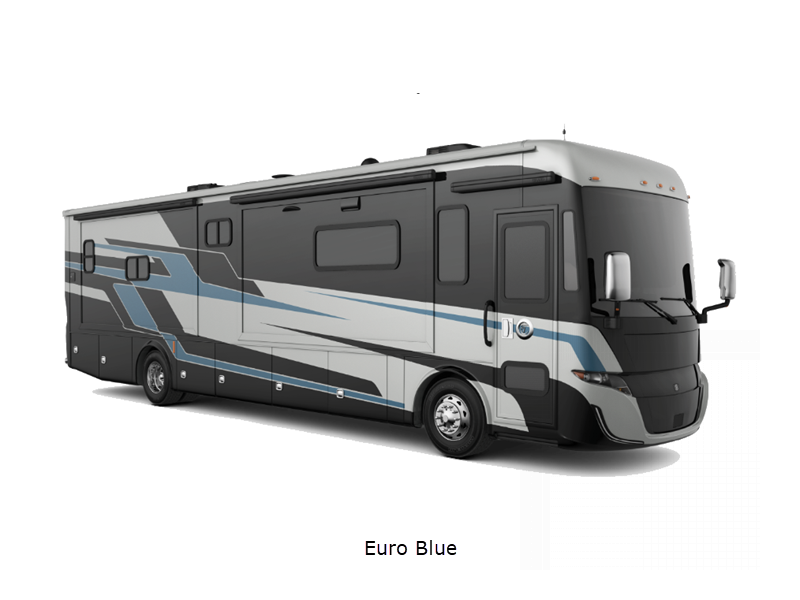

The full-body paint with three layers of clear coat help protect your unit as you head down the highway, and the Ultrafabrics Montage power captain's seats are sure to bring comfort. You will also appreciate the color backup camera and side view cameras for easy parking, along with hydraulic leveling jacks with a control panel to have you set up in no-time. You will be met with luxury features inside, including handcrafted cabinetry, solid surface countertops, a memory foam mattress, and dimmable LED lighting. New features include a VFS suspension, Lippert awnings, optional Starlink prep, and more!



High-end features at an affordable price have never been easier than with the Byway Class A diesel motorhomes by Tiffin Motorhomes!

  • Byway 33 FL

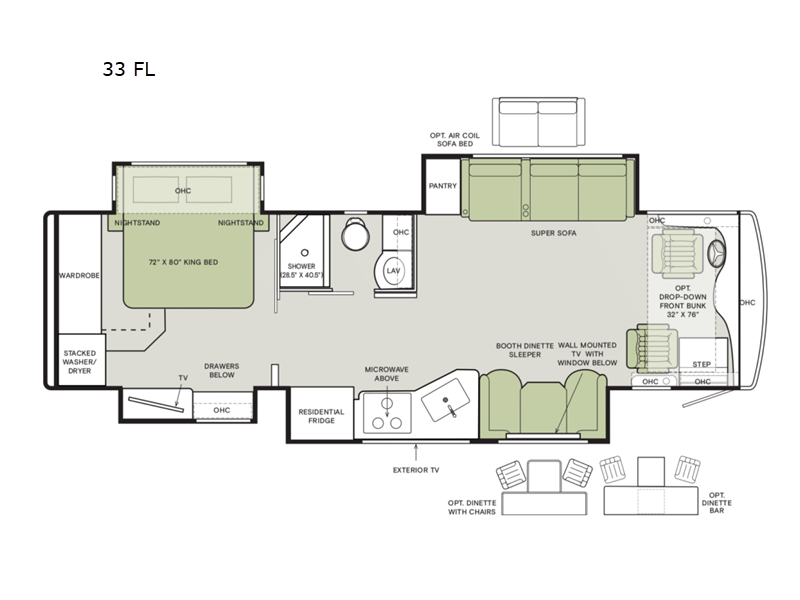

    Byway 33 FL Floorplan Image

    Take a Virtual Tour

    Tiffin Motorhomes Byway Class A diesel motorhome 33 FL highlights: Four Slide ... more about Byway 33 FL

    Specifications

    Sleeps 5
    Slides 4
    Length 35 ft 2 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Iron Mountain, Moondance
    Exterior Color Scarlet Thunder, Nasa, Frosted Granite, Euro Blue
    Hitch Weight 5000 lbs
    GVWR 29800 lbs
    Fresh Water Capacity 70 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 50 gals
    Tire Size 255/70R 22.5
    Furnace BTU 65000 btu
    Generator 8.0 kW Cummins Onan Diesel Quiet Series
    Fuel Type Diesel
    Engine Cummins B6.7
    Chassis Freightliner XCS Straight Rail Rear Engine Diesel
    Horsepower 340 hp
    Fuel Capacity 90 gals
    Wheelbase 198 in
    Available Beds King
    Torque 700 ft-lb
    Refrigerator Type Stainless Steel Residential with Bottom Freezer
    Refrigerator Size 18 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 28.5" x 40.5"
    Number of Awnings 1
    Axle Weight Front 10800 lbs
    Axle Weight Rear 19000 lbs
    LP Tank Capacity 24 gals
    Water Heater Type Truma AquaGo Comfort Instant
    AC BTU 30000 btu
    Basement Storage 71 cu. ft.
    TV Info LR TV, BR TV
    Awning Info Lippert Side-Mounted Power w/Integrated LED Lighting
    Washer/Dryer Available Yes
    Gross Combined Weight 33000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Byway 38 BL

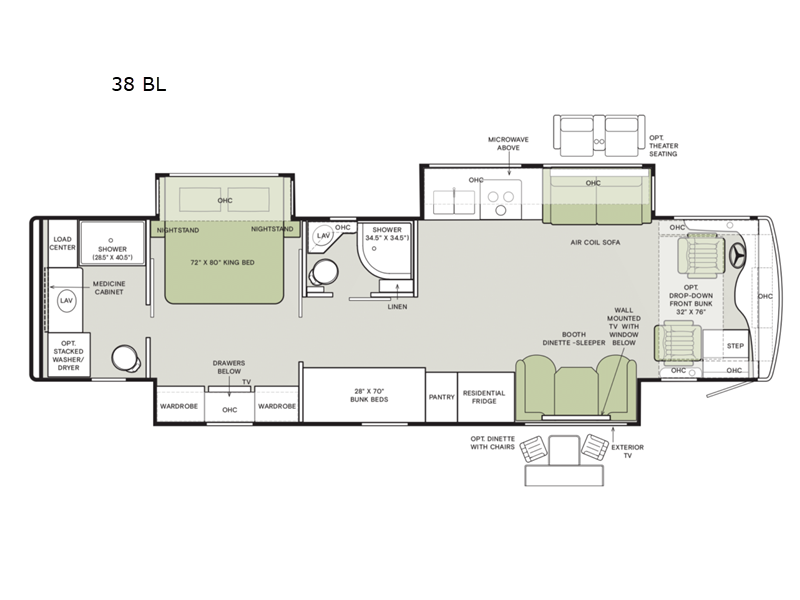

    Byway 38 BL Floorplan Image

    Tiffin Motorhomes Byway Class A diesel motorhome 38 BL highlights: Two Full ... more about Byway 38 BL

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 3
    Length 39 ft 6 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Iron Mountain, Moondance
    Exterior Color Scarlet Thunder, Nasa, Frosted Granite, Euro Blue
    Hitch Weight 5000 lbs
    GVWR 29800 lbs
    Fresh Water Capacity 70 gals
    Grey Water Capacity 65 gals
    Black Water Capacity 65 gals
    Tire Size 255/80R 22.5
    Furnace BTU 65000 btu
    Generator 8.0 kW Cummins Onan Diesel Quiet Series
    Fuel Type Diesel
    Engine Cummins B6.7
    Chassis Freightliner XCS Straight Rail Rear Engine Diesel
    Horsepower 340 hp
    Fuel Capacity 90 gals
    Wheelbase 252 in
    Number Of Bunks 2
    Available Beds King
    Torque 700 ft-lb
    Refrigerator Type Stainless Steel Residential with Bottom Freezer
    Refrigerator Size 18 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 34.5" x 34.5"
    Number of Awnings 1
    Axle Weight Front 10800 lbs
    Axle Weight Rear 19000 lbs
    LP Tank Capacity 24 gals
    Water Heater Type Truma AquaGo Comfort Instant
    AC BTU 30000 btu
    Basement Storage 118 cu. ft.
    TV Info LR TV, BR TV
    Awning Info Lippert Side-Mounted Power w/Integrated LED Lighting
    Washer/Dryer Available Yes
    Gross Combined Weight 33000 lbs
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

  • Byway 38 CL

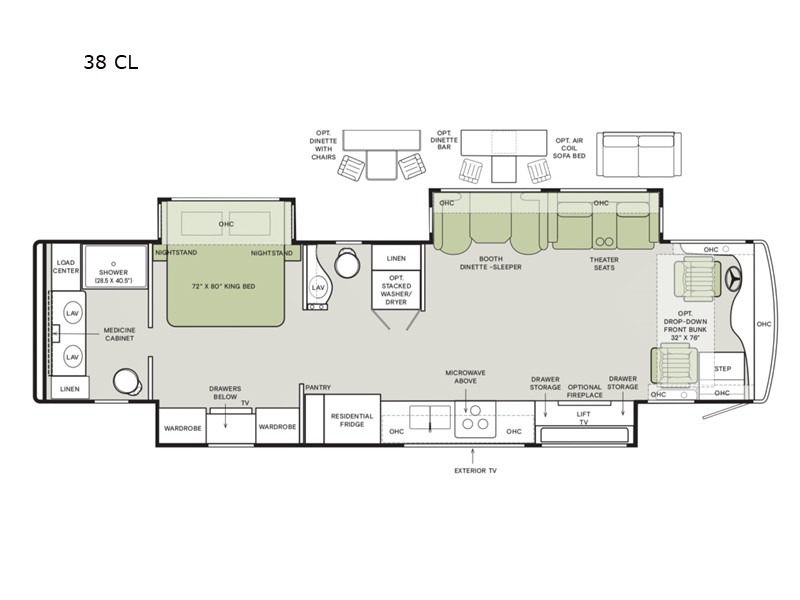

    Byway 38 CL Floorplan Image

    Take a Virtual Tour

    Tiffin Motorhomes Byway Class A diesel motorhome 38 CL highlights: Full-Wall ... more about Byway 38 CL

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 3
    Length 39 ft 6 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Iron Mountain, Moondance
    Exterior Color Scarlet Thunder, Nasa, Frosted Granite, Euro Blue
    Hitch Weight 5000 lbs
    GVWR 29800 lbs
    Fresh Water Capacity 70 gals
    Grey Water Capacity 65 gals
    Black Water Capacity 65 gals
    Tire Size 255/80R 22.5
    Furnace BTU 65000 btu
    Generator 8.0 kW Cummins Onan Diesel Quiet Series
    Fuel Type Diesel
    Engine Cummins B6.7
    Chassis Freightliner XCS Straight Rail Rear Engine Diesel
    Horsepower 340 hp
    Fuel Capacity 90 gals
    Wheelbase 252 in
    Available Beds King
    Torque 700 ft-lb
    Refrigerator Type Stainless Steel Residential with Bottom Freezer
    Refrigerator Size 18 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 28.5" x 40.5"
    Axle Weight Front 10800 lbs
    Axle Weight Rear 19000 lbs
    LP Tank Capacity 24 gals
    Water Heater Type Truma AquaGo Comfort Instant
    AC BTU 30000 btu
    Basement Storage 118 cu. ft.
    TV Info LR TV, BR TV
    Awning Info Lippert Side-Mounted Power w/Integrated LED Lighting
    Washer/Dryer Available Yes
    Gross Combined Weight 33000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

Byway Features:

Standard Features (2025)



Chassis and Drivetrain

  • Freightliner® XCS Straight Rail Rear Engine Diesel Chassis
  • Cummins® B6.7 340 HP Diesel Engine with 700 lb-ft Torque
  • 160-Amp Alternator
  • Allison® 2500 MH 6-speed Automatic Transmission with Lock-up Torque Converter
  • Aluminum Wheels
  • Front and Rear 255/80R 22.5 Tires
  • (2) 12-Volt Flooded Lead-Acid Chassis Batteries
  • Hydraulic Leveling Jacks with Control Panel
  • Freightliner VFS Air Ride Front Suspension
  • Freightliner® V-Series V-Ride Rear Suspension
  • Custom Tuned Sachs® Shock Absorbers
  • Rear Radiator
  • Front Disc Brakes and Rear Drum Brakes
  • Full Air Brake System with Automatic Slack Adjusters
  • Single Stage Variable Geometry Turbocharger (VGT) Engine Brake
  • Manual Parking Brake
  • Driver Side Fuel Fill
  • Tire Pressure Monitoring
  • Automatic Traction Control

Construction

  • Seamless One-piece Gel-coat Fiberglass Molded Roof Cap
  • 5 1/4" Formed Roof Insulation
  • Tubular Aluminum Roof Skeleton Frames
  • Quiet Air Cooling System
  • One-piece Molded Gel-coat Fiberglass Front and Rear Caps
  • Steel Cockpit Overhead Support Frame
  • Crane® Composites Noble® Select All-Composite Exterior Sidewalls
  • Tubular Aluminum Wall Skeleton Frames
  • High-performance Thermal Insulation in Sidewalls
  • Steel Floor Skeleton
  • Engineered Wood Sub-flooring
  • 1 1/2" Thick Thermal Insulation in Floor
  • Steel Basement Construction
  • Rust Protective Undercoating
  • Hydraulic Slide-out Mechanisms

Electrical

  • Liquid Propane (LP) Coach
  • Spyder Controls Multiplex System
  • Firefly Integrations Mira Module
  • Centralized 7” Spyder System Main Monitor
  • Interior Entryway Spyder Switch Panel
  • Conveniently Located Spyder Switch Panels Throughout Coach
  • 8.0-Kilowatt Onan® Quiet Diesel Generator
  • Generator Slide Tray
  • 2,000-Watt Pure Sine Wave Inverter Charger with Auto-Gen Start
  • (4) 6-Volt, 230-Amp Hours Flooded Lead-Acid House Batteries
  • (2) 15,000-BTU Air Conditioners with Heat Pumps
  • Multiplex Integrated Thermostat with Built-in Temperature Sensor
  • (1) 35,000-BTU and (1) 30,000-BTU Ducted Furnaces
  • 50-Amp Shore Power
  • Prep for Solar Panels
  • Auxiliary Solar Port
  • HD Over-the-air Antenna
  • Park Cable and Ground Satellite Hook-up
  • Prep for In-motion Satellite
  • Blu-ray™ Player
  • Satellite Receiver
  • Prep for Wi-Fi Booster
  • 12-Volt Breaker Panel
  • 12-Volt Disconnect Switch
  • Rotary Disconnect Switches for House Batteries, Chassis Batteries, and Inverter
  • Ground Fault Circuit Interrupter (GFCI) Outlets at Galley, Lavatories, and Sewer Bay
  • 110-Volt Exterior Receptacle
  • Surge Guard® Transfer Switch
  • USB Receptacles Throughout Coach

Electrical Options

  • In-motion Satellite Dish
  • Wi-Fi Booster
  • Starlink Prep in Sewer Compartment

Plumbing

  • Truma AquaGo™ Comfort Instant Water Heater
  • Water Heater Bypass System
  • Aqua View Showermiser™
  • Water Filter
  • Water Pump Switch Access from Spyder System and Sewer Bay Board
  • Low-point Water Drain Lines
  • Black Holding Tank Flush System
  • Gravity Water Fill
  • Heated Fresh and Holding Tank Compartment via Heat Duct
  • Tank Level Monitor System
  • Centralized Exterior Sewer Bay with Gravity Black and Grey Evacuation Ports
  • Exterior Rinse Hose with Shower Head
  • Sewer Bay Hand Sanitizer and Paper Towel Holders

Exterior

  • Full-body Paint with (3) Layers of Clear Coat
  • Single-colored Slide-out Endwalls
  • High Performance Protective Film on Front Cap and Select Areas
  • (1) Side-mounted Powered Patio Awning with Integrated LED Lighting
  • Slide-out Toppers
  • Side-swinging Exterior Storage Doors with Gas Shocks
  • Lockable Handles on Compartment Doors
  • Motion-sensor Lights in Cargo Bay
  • 120-Volt and 12-Volt Outlets Inside Cargo Bays
  • Charcoal Carpet Cargo Walls
  • Fiberglass Reinforced Plastic Basement Floor
  • Frameless, Single-Pane Windows
  • Exterior Patio Light
  • Daytime Running Lights
  • Docking Lights
  • Chrome Power Heated Side-View Mirrors with Integrated Cameras
  • Fast Charge USB ports within Exterior TV Compartment
  • Lightweight Entry Door with Integrated Screen
  • Entry Door Grab Handle
  • Deadbolt Front Entrance Lock
  • Automatic Double Entry Step
  • Mud Flaps
  • Lippert On-The-Go Telescoping Ladder

Exterior Options

  • Exterior TV with Soundbar

Exterior Paint Color Options

  • Euro Blue G2 Full Body Paint

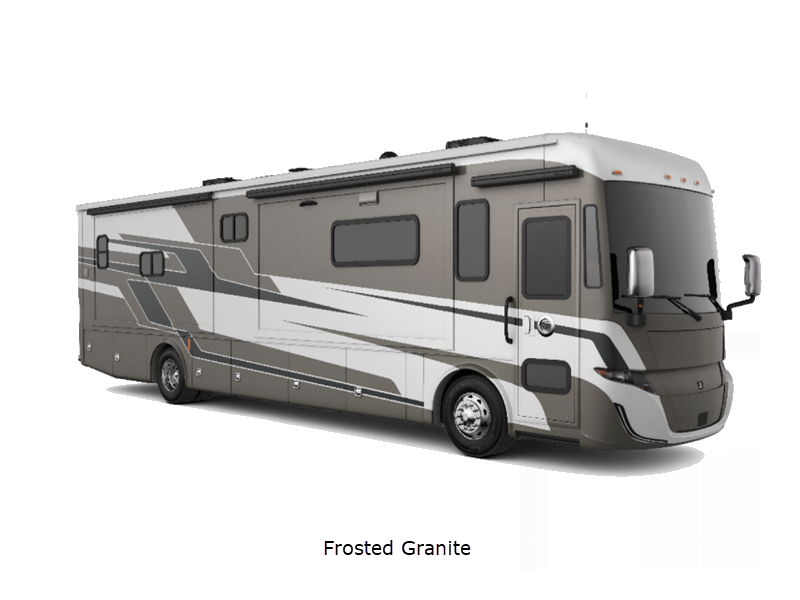

  • Frosted Granite G2 Full Body Paint

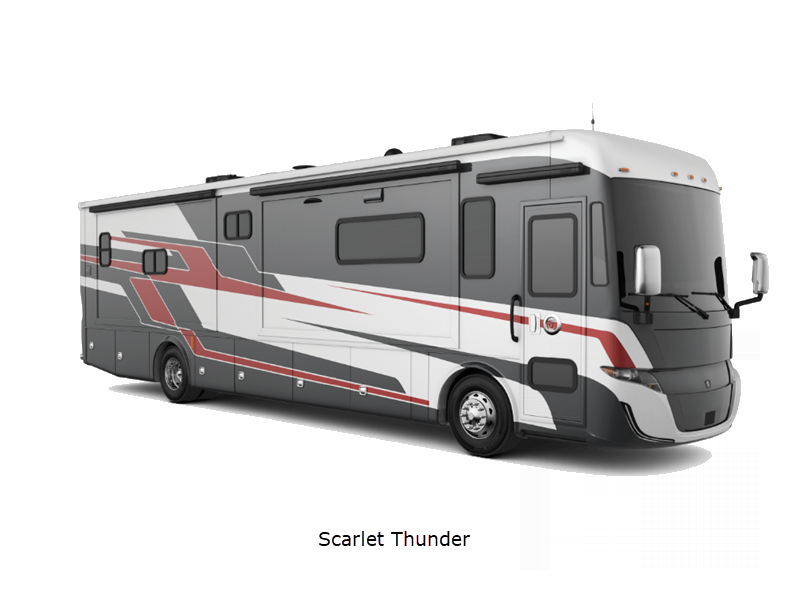

  • Scarlet Thunder G2 Full Body Paint

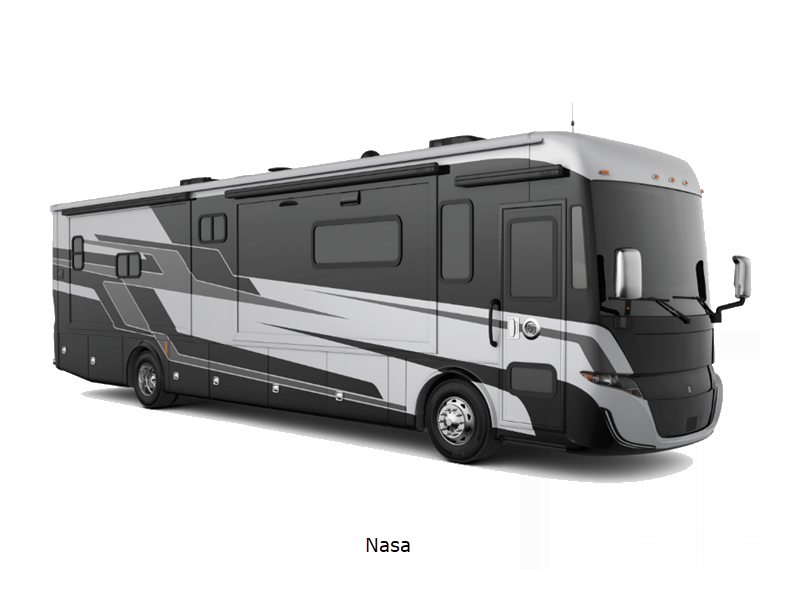

  • Nasa G2 Full Body Paint

Interior

  • Handcrafted Overhead Cabinetry
  • Carpeted Step Well with Composite Steps
  • Manual Step Well Cover
  • Living Area TV
  • Solid Surface Galley Countertop
  • Handcrafted Slide-out Fascia
  • Soft Touch Vinyl Ceiling
  • Dimmable LED Lighting
  • Prep for Washer and Dryer
  • Carbon Monoxide Detector
  • LPG Leak Detector
  • Smoke Detector
  • Fire Extinguisher
  • Solar and Privacy Shades
  • Soft-closing Drawers
  • Powered Roof Vents
  • Interior Grab Handle at Entry Door
  • Egress Windows Throughout Coach

Interior Decor Packages

  • Moondance (Optional)
  • Iron Mountain (Optional)

Upholstery Fabrics

  • Ultrafabrics Montage Alpaca (DEP)
  • Ultrafabrics Montage Landscape (DEP)

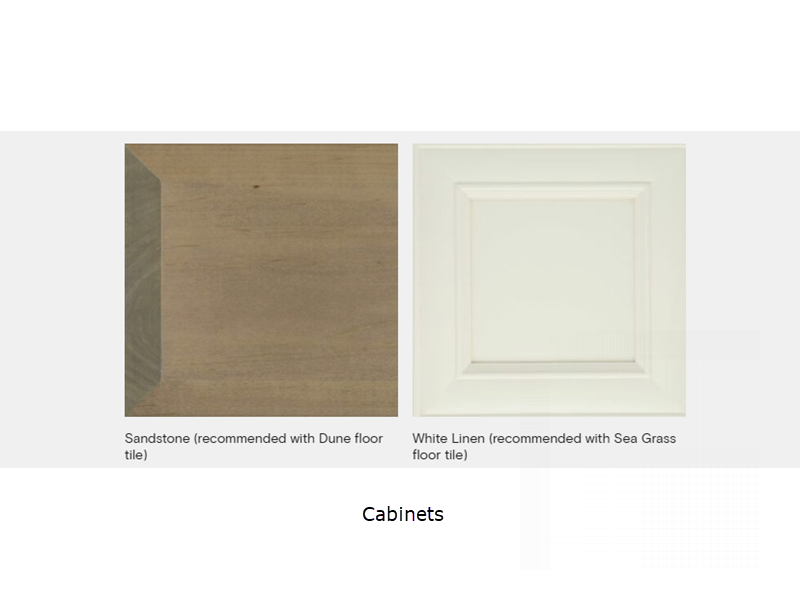

Cabinetry Color (Optional)

  • Sandstone
  • White Linen

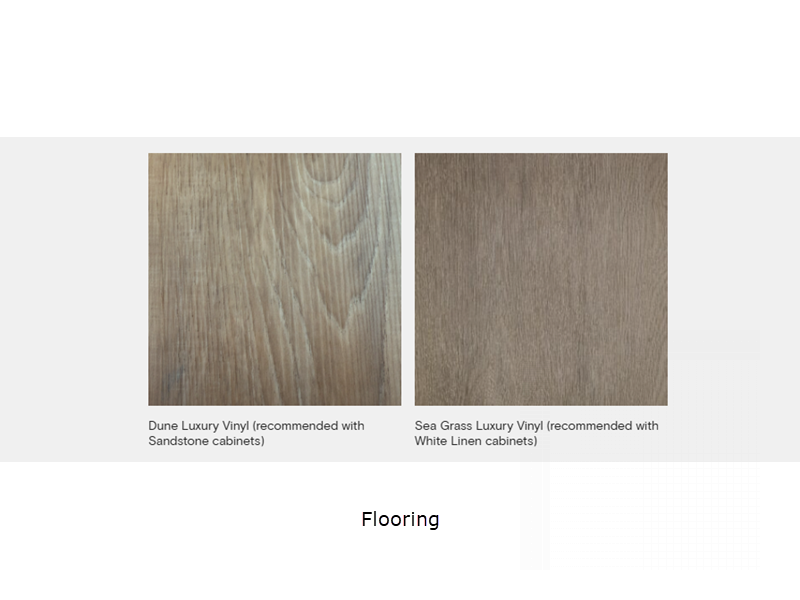

Flooring

  • Stony Ground Linoleum

Interior Add On Options

  • Standalone Living Area Fireplace (38 CL Only)
  • Stacked Washer and Dryer
  • Central Vacuum System

Driver's Compartments

  • Ultrafabrics® Montage Power Driver and Passenger Seats
  • Dual Driver And Passenger Seat Armrests
  • Swivel Bases for Driver and Passenger Seats
  • Adjustable Seatbelt Brackets
  • Passenger Seat Footrest
  • Tilt and Telescoping Steering Wheel with Integrated Controls
  • Adjustable Accelerator and Brake Pedals
  • Ergonomic Dash with Graphite Accents
  • Mounted Dash Fans
  • Cupholders on Driver and Passenger Side
  • Digital Dash Cluster
  • (1) Center Storage Drawer
  • Generator Start & Stop Rocker Switch
  • USB Dash Receptacles
  • 12-Volt Dash Receptacle
  • Backlit Dash Rocker Switches
  • Passenger Console Controls for Map Light, Fan, and Step Well Light
  • Driver and Passenger Map Lights
  • One-piece Panoramic Windshield
  • Single-motor Intermittent Windshield Wipers
  • Automatic LED Headlights
  • Side-view Cameras
  • Color Back-up Camera
  • 7" High Definition LED Multichannel Monitor for Side-view and Back-up Cameras
  • Stereo with AM & FM Radio, CD Player, and Satellite Radio
  • Ceiling Mounted Speakers
  • In-dash Navigation System
  • Overhead Cabinetry with Wooden Panel Doors
  • Auxiliary Start Switch
  • Concealed Air Horn
  • Manual Opening Driver Side Window
  • Solid, Non-opening Passenger Side Window
  • Powered Solar and Privacy Windshield Shade
  • Manual Solar and Privacy Shades on Side Windows

Driver's Compartment Add On Options

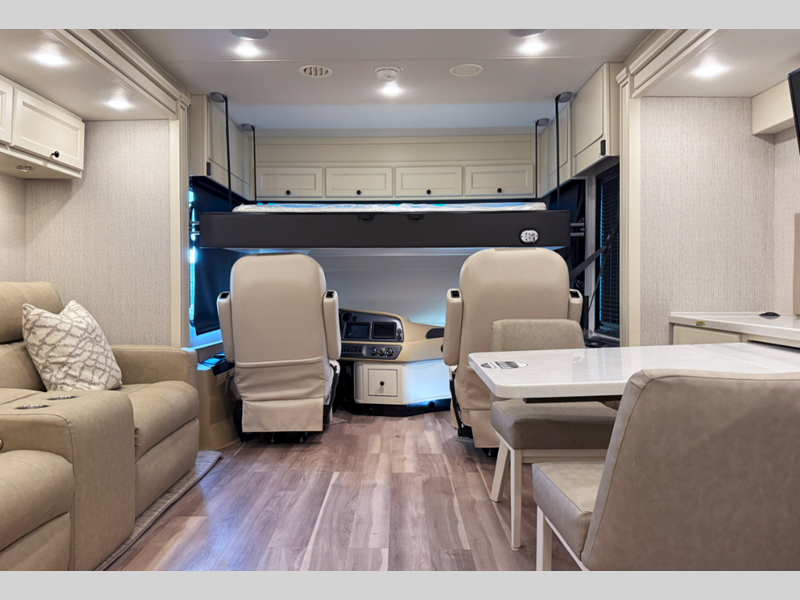

  • Electric Front Overhead Drop-Down Bunk

Dinette and Living Area

Driver Side Dinette

  • 72" Booth Dinette-Sleeper (Std. 38 CL Only)

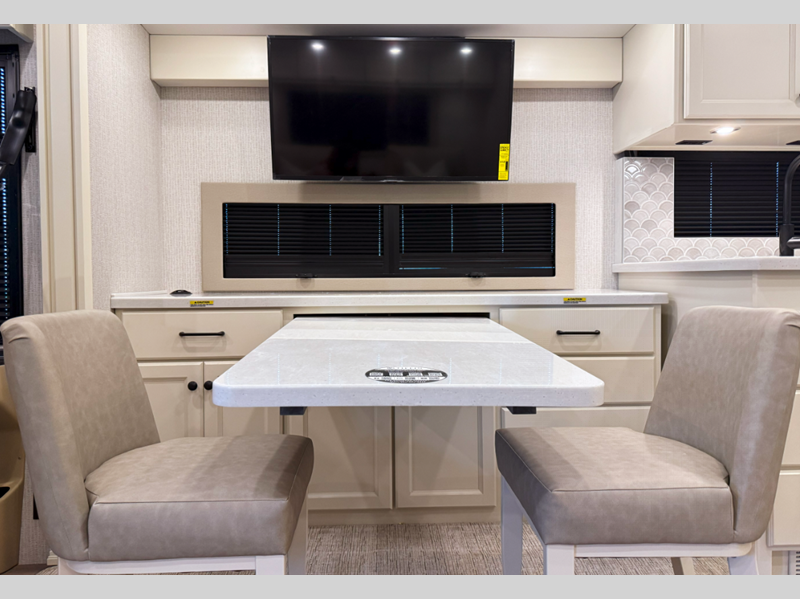

  • 72" Dinette with Chairs (Opt. 38 CL Only)
  • 72" Dinette Bar (Opt. 38 CL Only)

Driver Side Furniture

  • 95" Super Sofa (Std. 33 FL Only)
  • 68" Theater Seating (Opt. 38 BL; Std. 38 CL; N/A 33 FL)
  • 68" Air Coil Sofa Bed (Std. 38 BL; Opt. 38 CL; N/A 33 FL)

Passenger Side Dinette

  • 75" Booth Dinette-Sleeper (Std. 33 FL, 38 BL; N/A 38 CL)
  • 75" Dinette with Chairs (Opt. 33 FL, 38 BL; N/A 38 CL)
  • 72" Dinette Bar (Opt. 33 FL Only)

Dinette and Living Area Add On Options

  • Passenger Side Bunk Beds (28" x 70") (Std. 38 BL; N/A 33 FL, 38 CL)

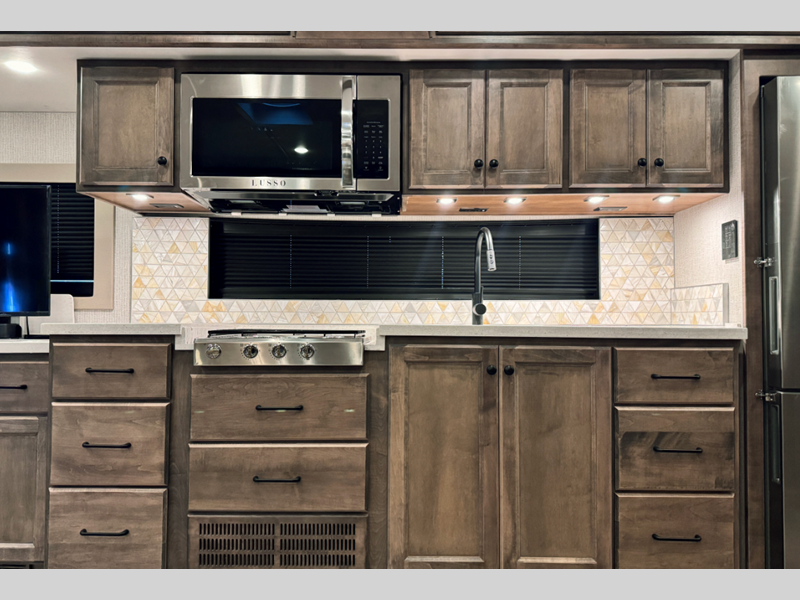

Kitchen

  • 18-Cubic Foot Stainless Steel Residential Refrigerator with Bottom Freezer
  • 1.5-Cubic Foot Smart Convection Microwave
  • Large Kitchen Sink with Single Level Faucet and Pull-down Sprayer
  • Galley Overhead Cabinets
  • Panoramic Galley Window
  • Task Lighting
  • Full Tile Backsplash
  • Solid Surface Galley Countertop, Sink, and Cooktop Cover

Cooking Appliances

  • Three-Burner Liquid Propane Cooktop
  • Oven Range with Liquid Propane Cooktop (Optional)

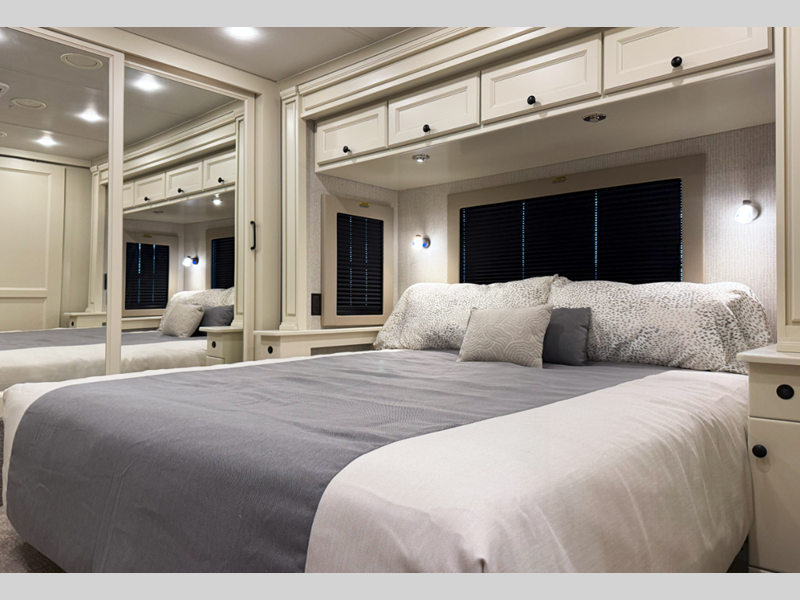

Bedroom

  • Memory Foam King Mattress (72" x 80")
  • Under Bed Storage
  • Bedside Windows
  • Overhead Cabinets with Headboard
  • Bed Comforter with Throw Pillows
  • Handcrafted Privacy Door
  • LED Reading Lights
  • Nightstand with Hardwood Finished Top
  • Mounted Bedroom TV
  • Centralized Entertainment Center
  • Wardrobe with Drawers Underneath

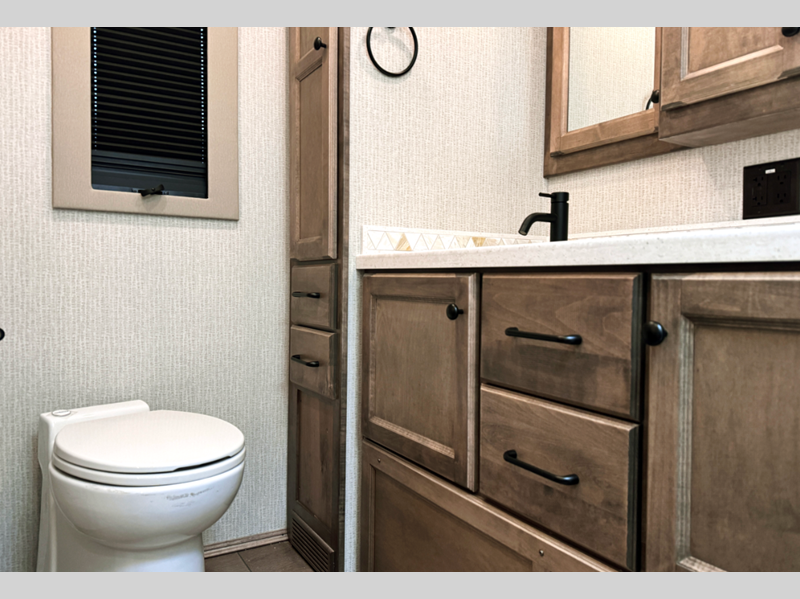

Bathroom

  • (1) Porcelain Master Bathroom Sink
  • Solid Surface Lavatory Top
  • Handheld Shower Head with Slide Bar
  • Shower Skylight
  • Towel and Toilet Paper Holders
  • Mirrored Medicine Cabinet
  • Roof Vent Fan
  • Base Cabinet

Number of Bathrooms

  • (1) Bathroom (Std. 33 FL Only)
  • (1) Bathroom and (1) Half-Bath (Std. 38 BL, 38 CL Only)

Shower

  • One-Piece Molded Fiberglass Shower (28.5" x 40.5") (Std. 33 FL, 38 CL Only)
  • (2) One-Piece Molded Fiberglass Showers (28.5" x 40.5" & 34.5" x 34.5") (Std. 38 BL Only)

Toilet

  • (1) Gravity Flush Toilet (Std. 33 FL Only)
  • (1) Gravity Flush Toilet and (1) Macerator Toilet (Std. 38 BL, 38 CL Only)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Tiffin Motorhomes Logo

Tiffin Motorhomes is proud to be one of the few family-owned manufacturers in the industry, and it makes a significant difference in how our company operates versus our competitors. For starters, with the Tiffin name on every coach, building a superior motorhome isn’t just our occupation. It’s a matter of personal pride, a pursuit we have committed our lives to perfecting.
